TV Shield#

The TV Shield gives the OpenMV Cam an NTSC analog video output via a VS23S010 SPI-to-NTSC video generator, driving an on-board RCA jack so you can plug a composite video display straight into the camera.

TV Shield

For full datasheet, photos, and ordering see the TV Shield product page.

Highlights#

  • VS23S010 SPI-to-NTSC chip

  • 352x240 NTSC SIF output at 60 Hz

  • On-board RCA jack for composite video

Pinout#

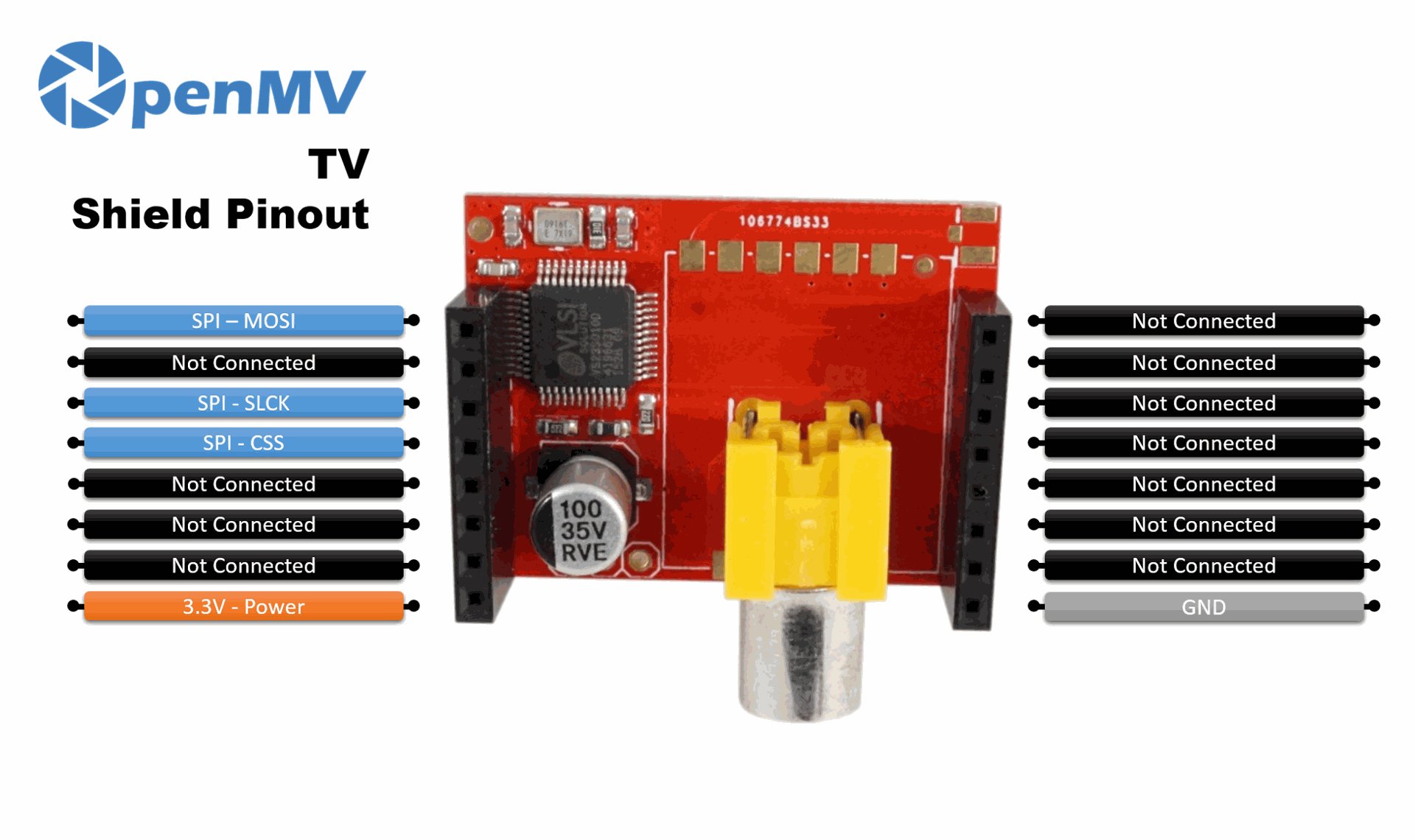

TV Shield Pinout

Pin reference#

Pin

Function

P0

SPI MOSI — data to the VS23S010

P2

SPI clock

P3

SPI chip select

3.3V rail

Powers the VS23S010

GND rail

Common ground (also routed to the on-board RCA jack)

Note

The NTSC video output, VIN, and GND are also broken out to through-hole pads on the bottom of the shield — solder wires there to take the wired composite video signal off the board.

Usage#

Drive the shield through the TVDisplay class exposed by the display module. Stream camera frames out the RCA jack at 352×240 SIF:

import csi
import display
import time

csi0 = csi.CSI()
csi0.reset()
csi0.pixformat(csi.RGB565)
csi0.framesize(csi.SIF)

tv = display.TVDisplay()
clock = time.clock()

while True:
    clock.tick()
    tv.write(csi0.snapshot())
    print(clock.fps())
