OpenMV-shields

Tilläggskort som kopplas in i en OpenMV Cam och utökar den med nätverk, motorstyrning, displayer, sensorer och mer. Varje sida beskriver vad shielden gör, viktiga specifikationer och API:erna för att styra den från MicroPython.

Moderna shields

Gigabit PoE Shield

Gigabit Ethernet with PoE for higher-bandwidth streaming.

Explore →

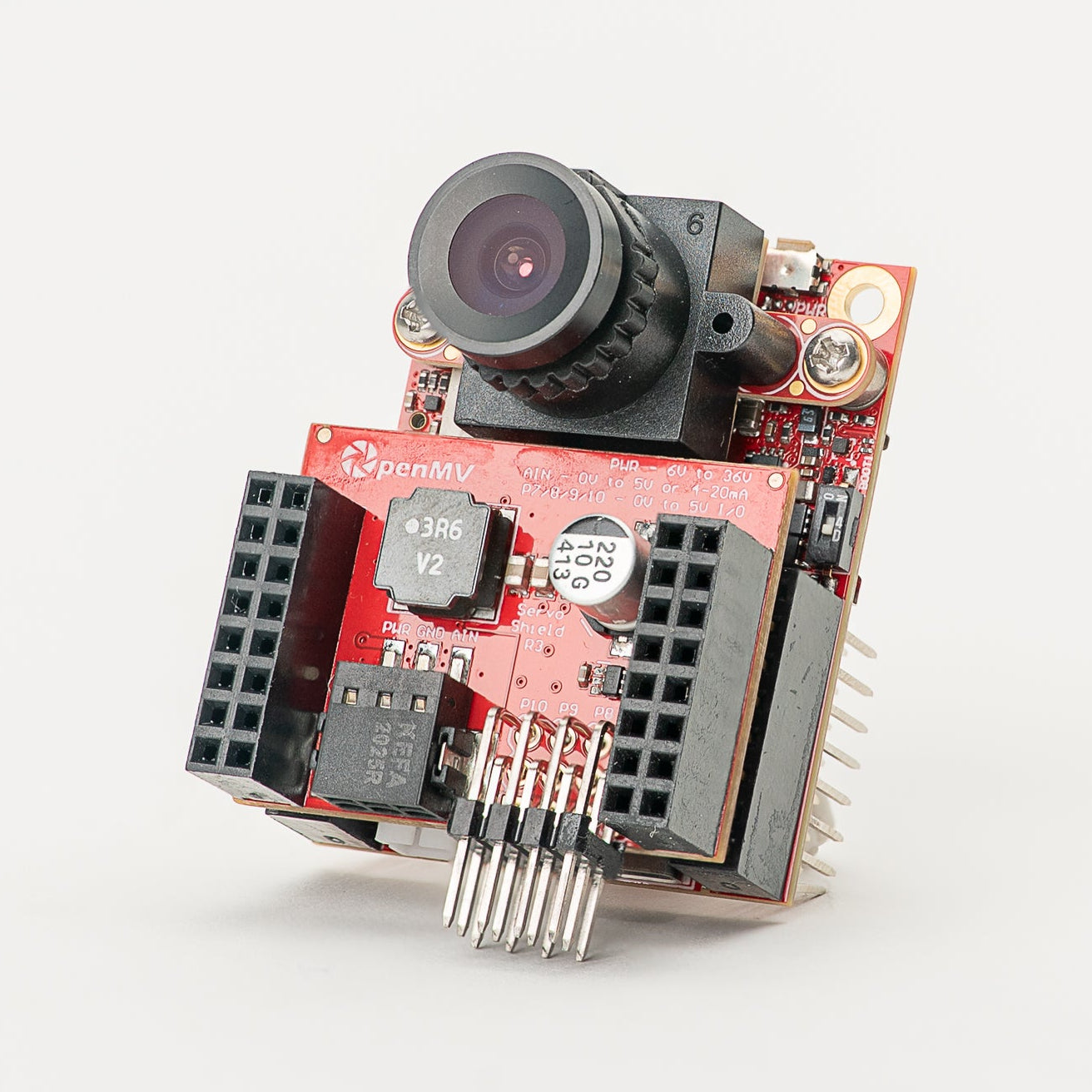

Servo Shield

Drive up to 4 servos drawing up to 5A while powering the camera, 6–36V input.

Explore →

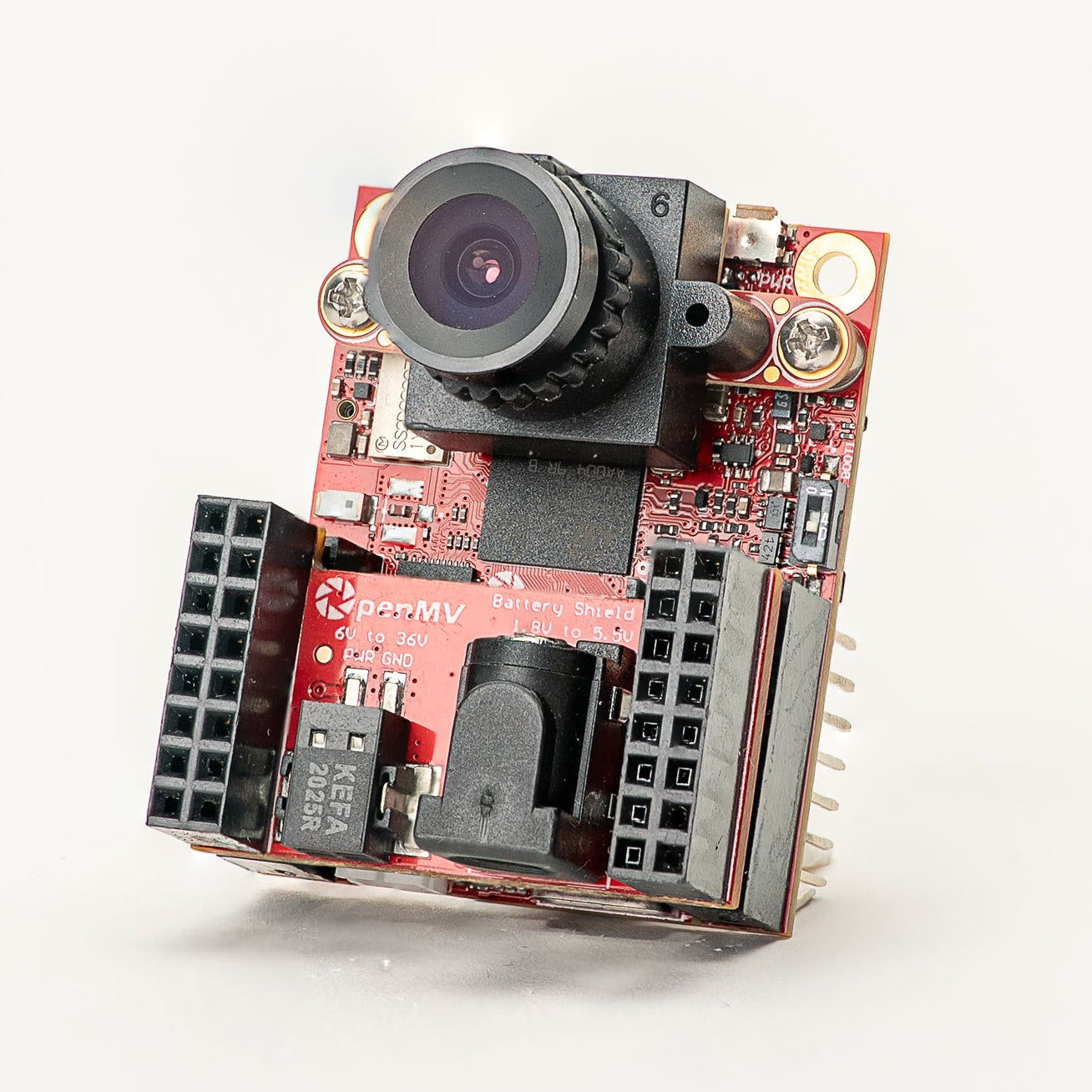

Battery Shield

1.8–5.5V battery input via a DC barrel jack, plus a 6–36V wide input.

Explore →

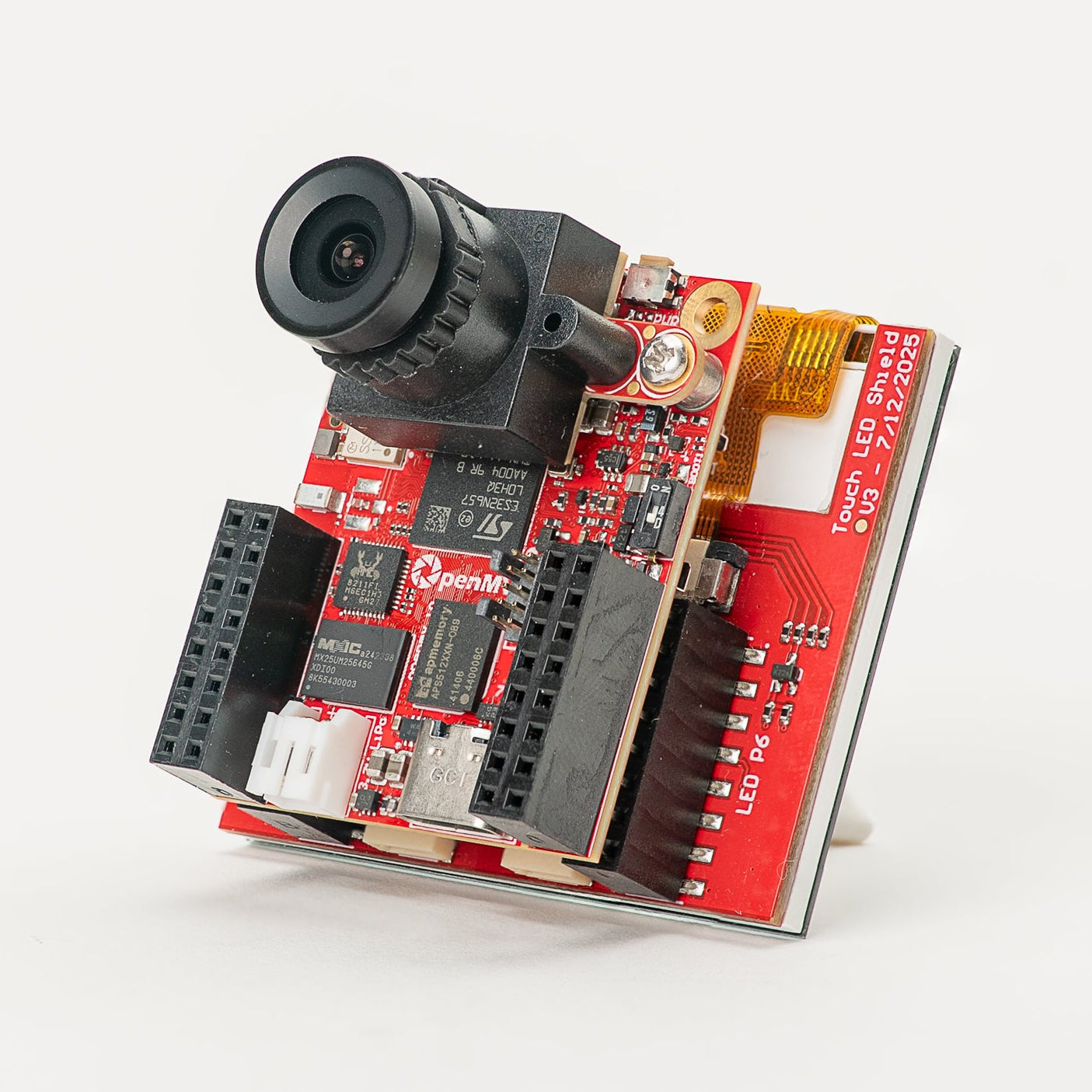

Touch LCD Shield

2.3" 320×240 SPI LCD with capacitive multi-touch and Qwiic.

Explore →

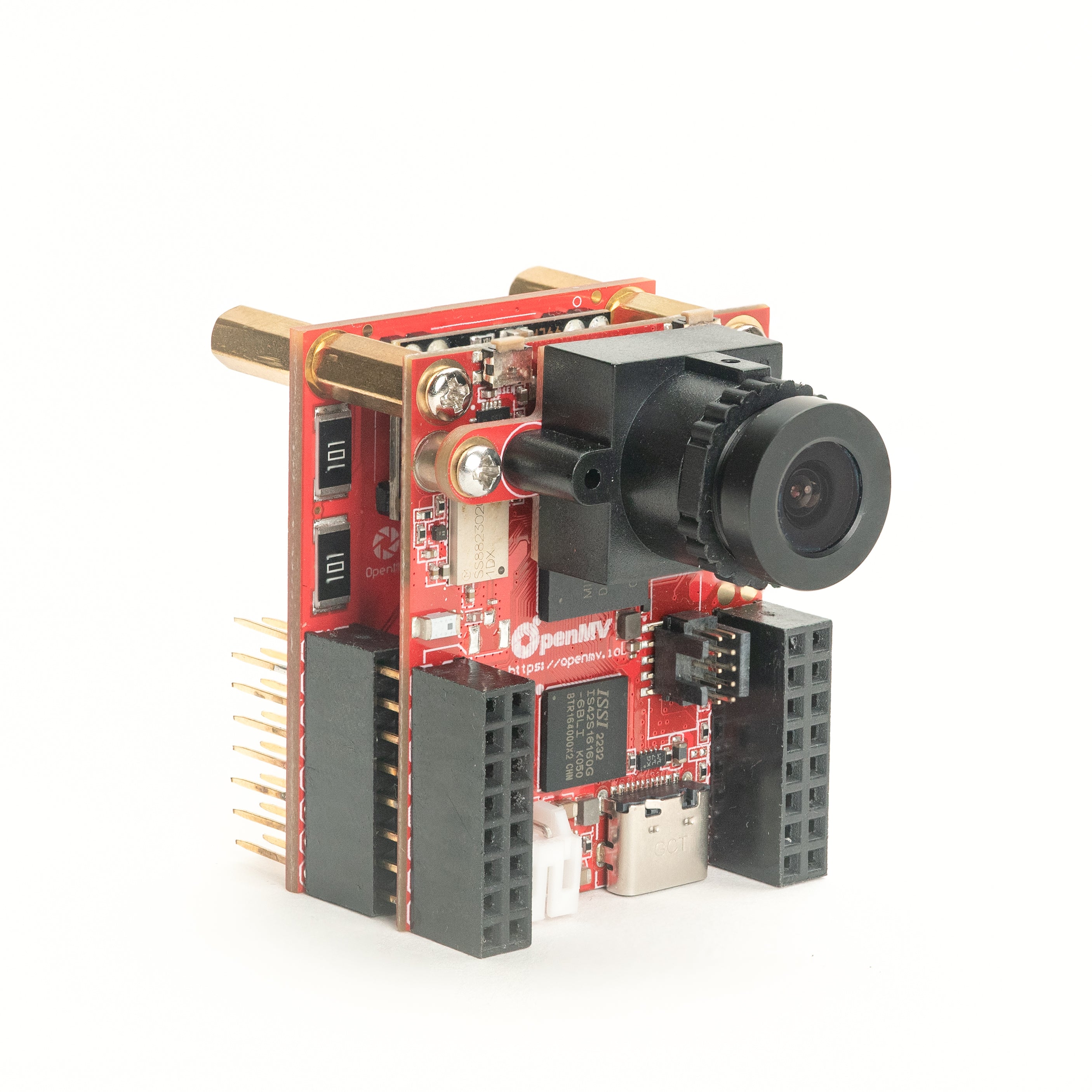

PoE Shield

10/100 Ethernet with Power-over-Ethernet.

Explore →

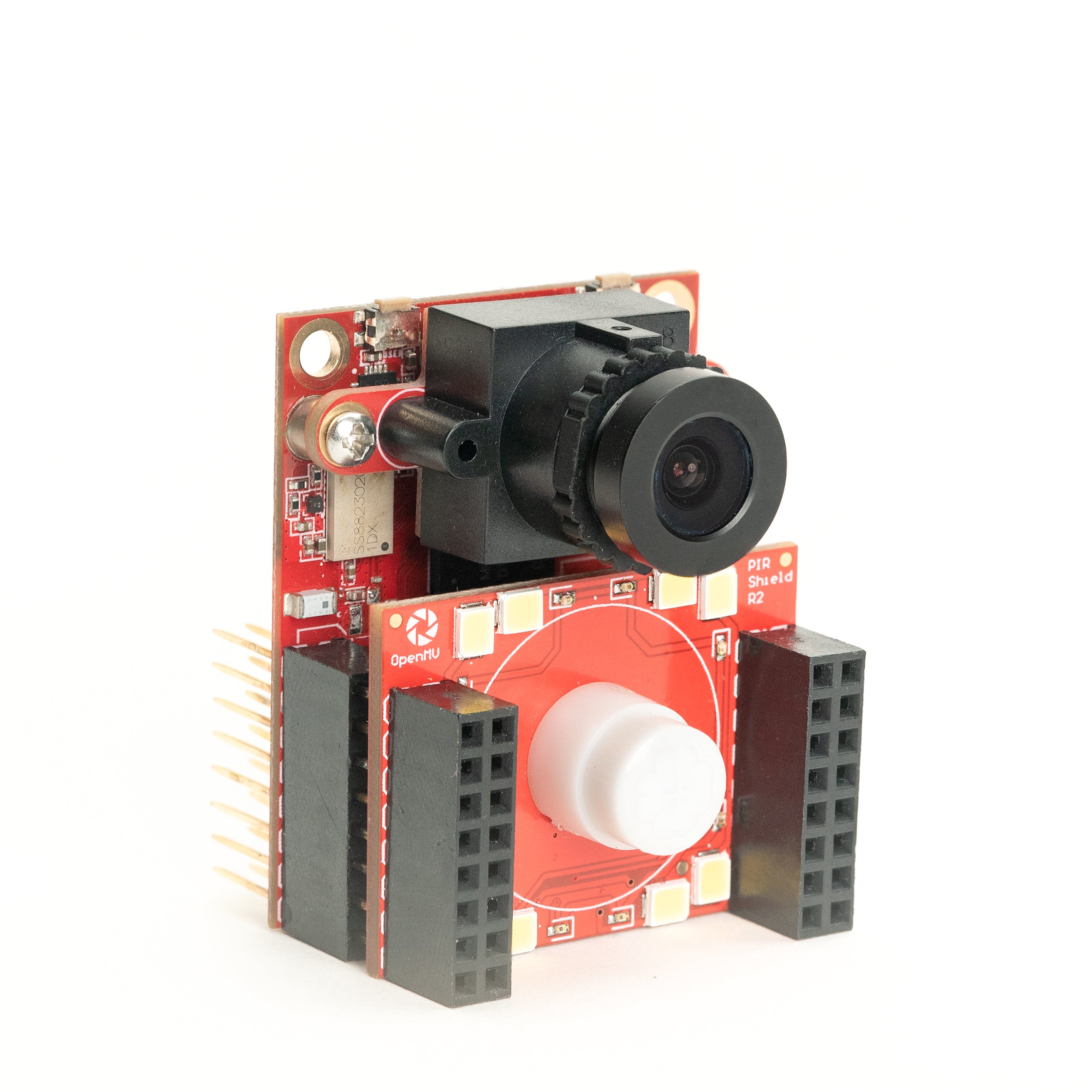

PIR Shield

6µA standby motion trigger plus white and 850 nm IR illumination.

Explore →

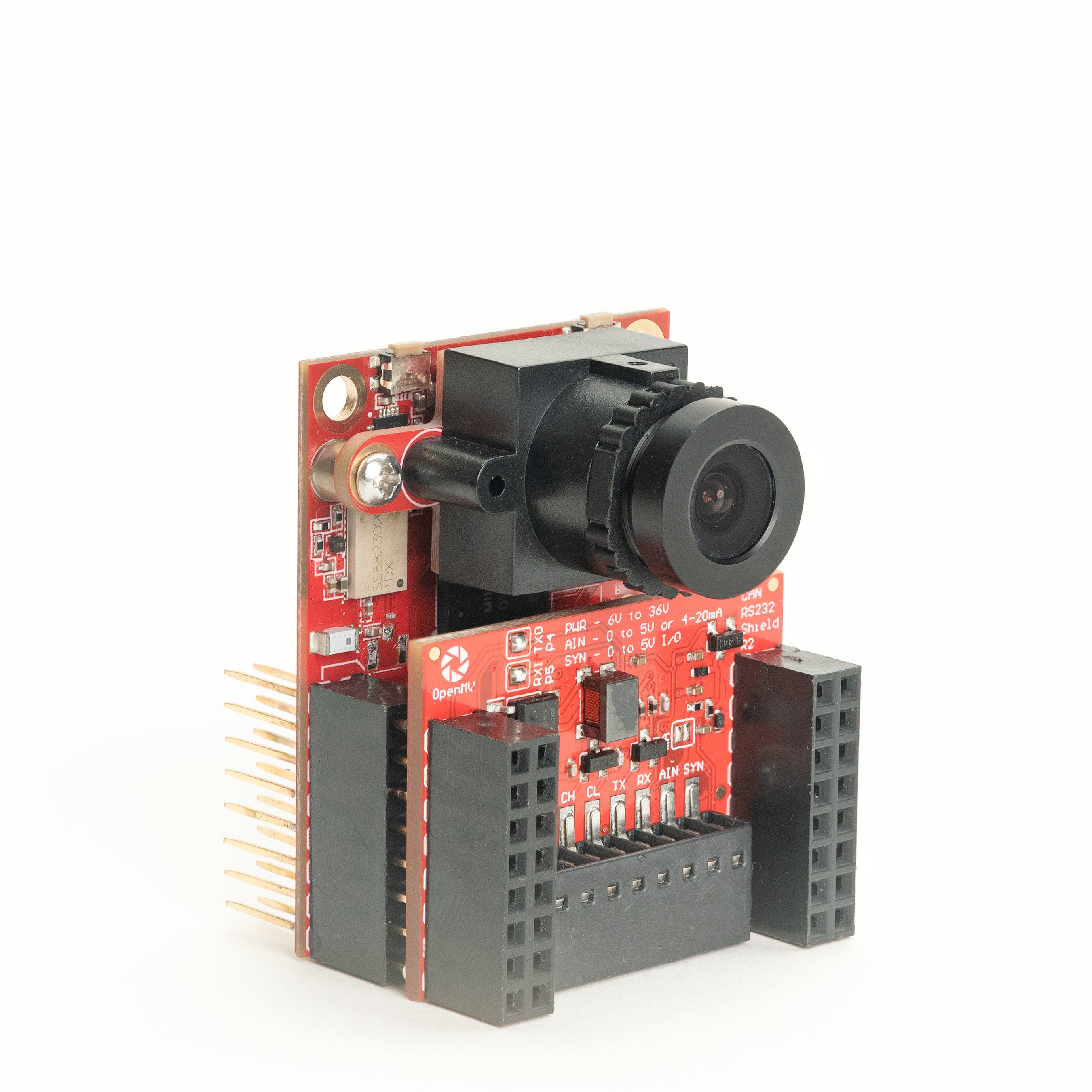

CAN/RS232 Shield

8 Mb/s CAN-FD plus 1 Mb/s RS-232 for vehicles and legacy serial.

Explore →

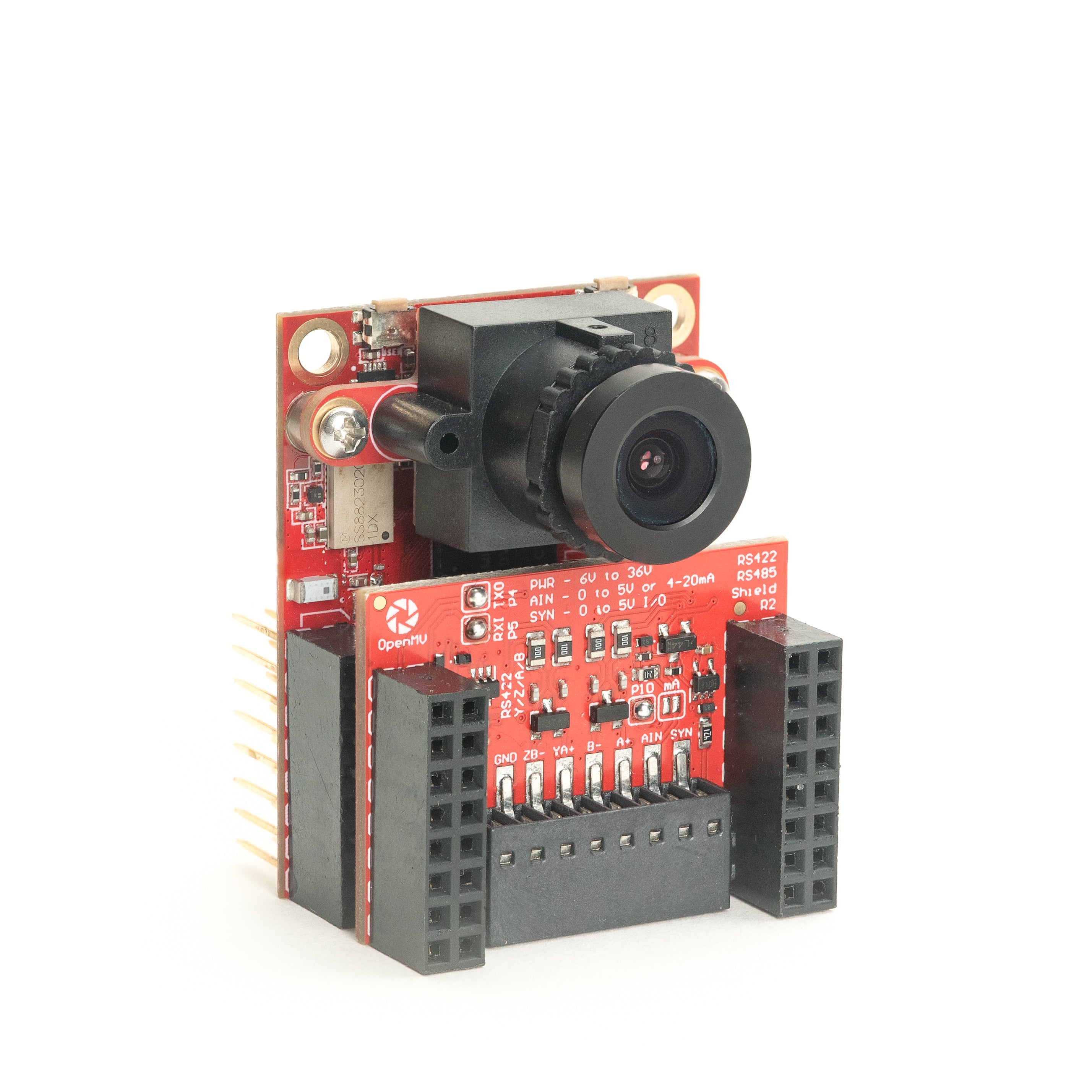

RS422/RS485 Shield

10 Mb/s differential serial for long-distance industrial buses.

Explore →

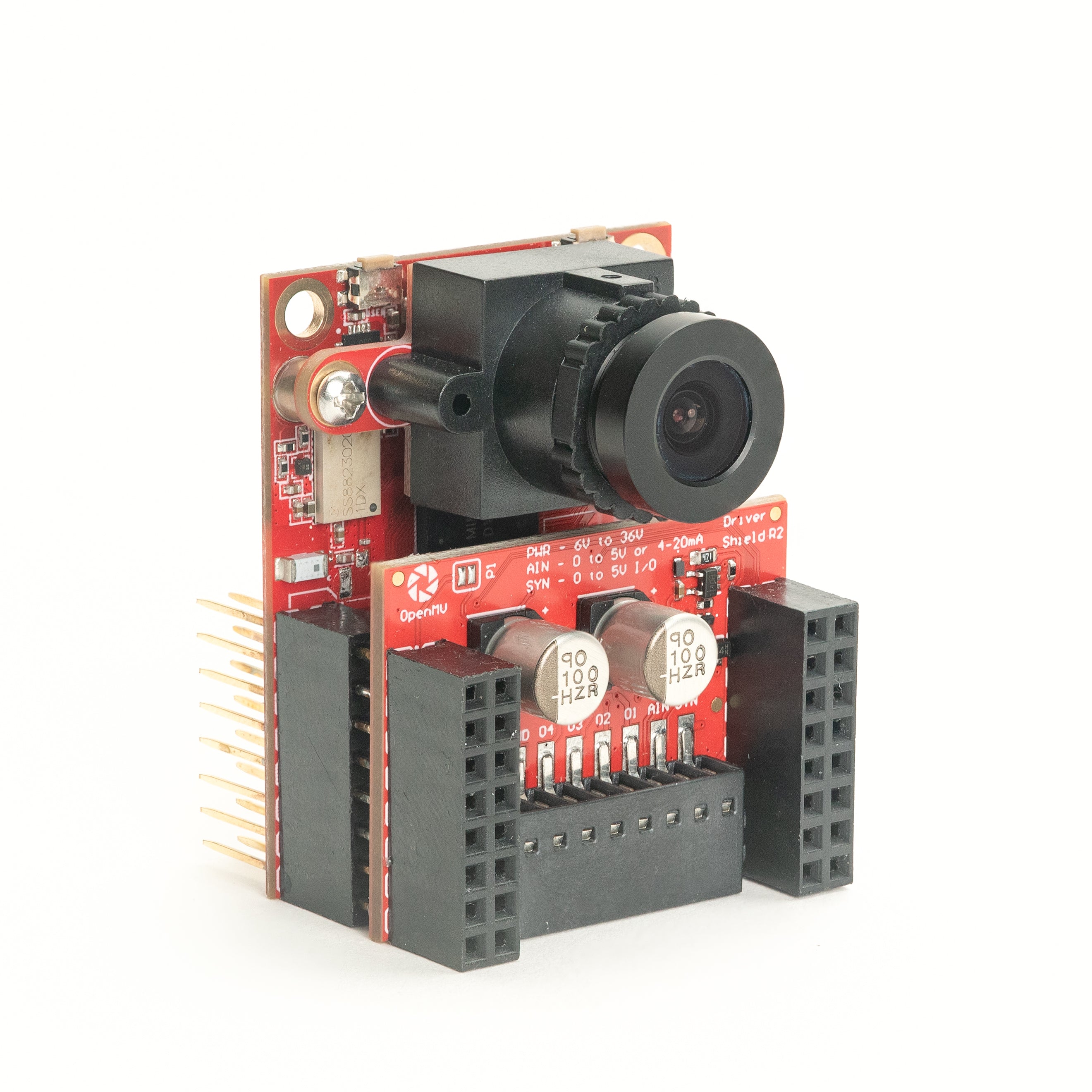

Driver Shield

Dual 3A motor drivers or quad 1.5A line drivers, 6–36V.

Explore →

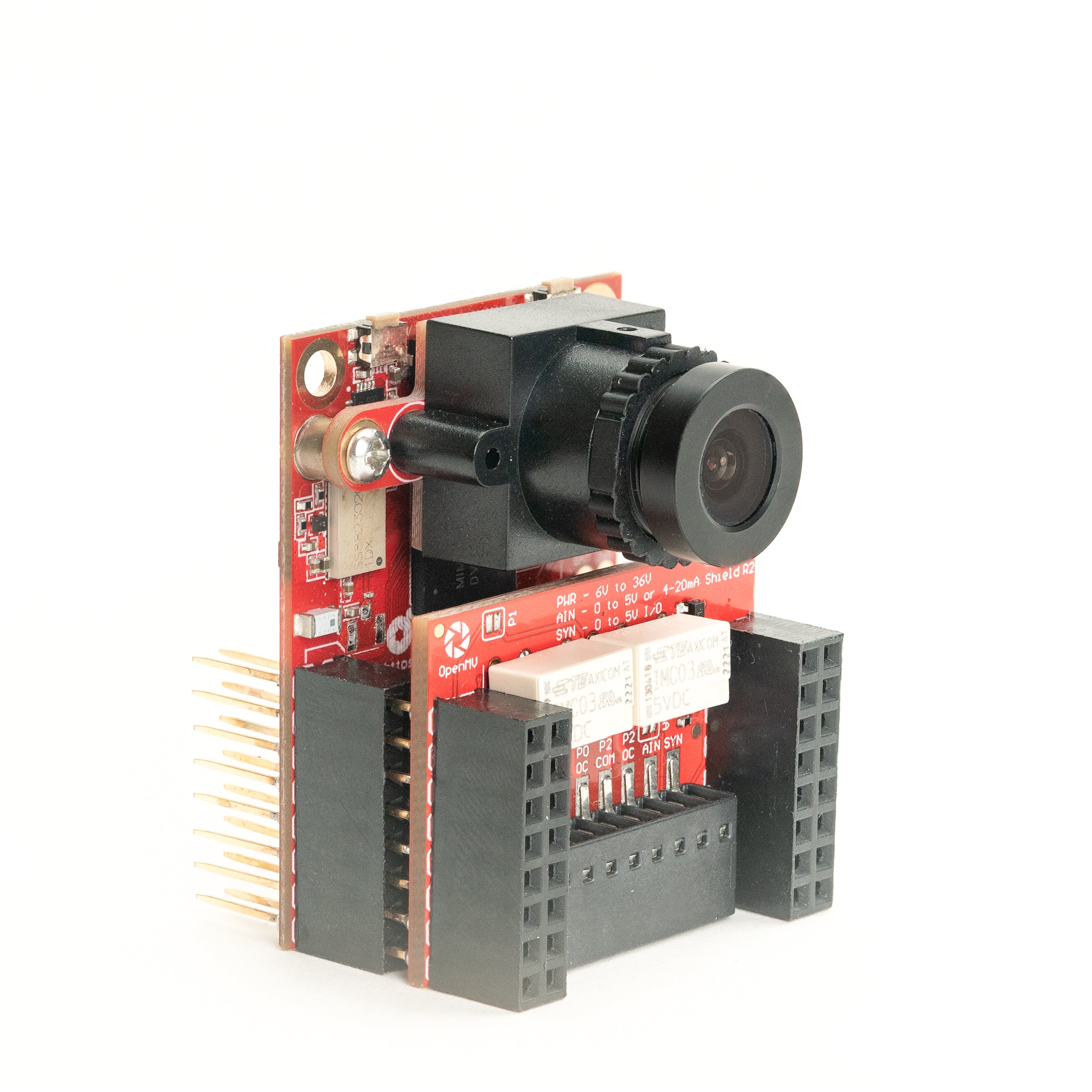

Relay Shield

Dual 60 W relays for AC/DC load switching, 6–36V input.

Explore →

AE3-tillbehör

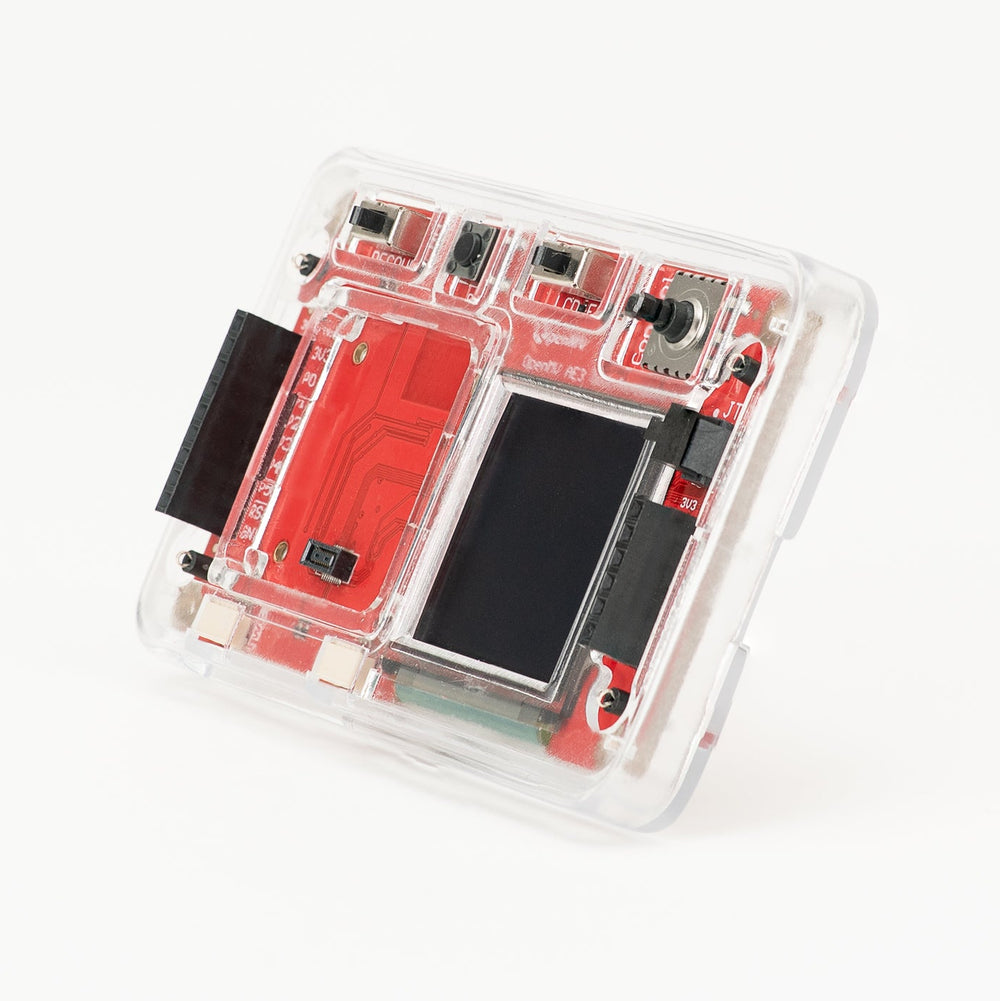

AE3 OLED Breakout

128×128 RGB OLED, 5‑way joystick, Qwiic, and a 10‑pin ARM SWD header.

Explore →

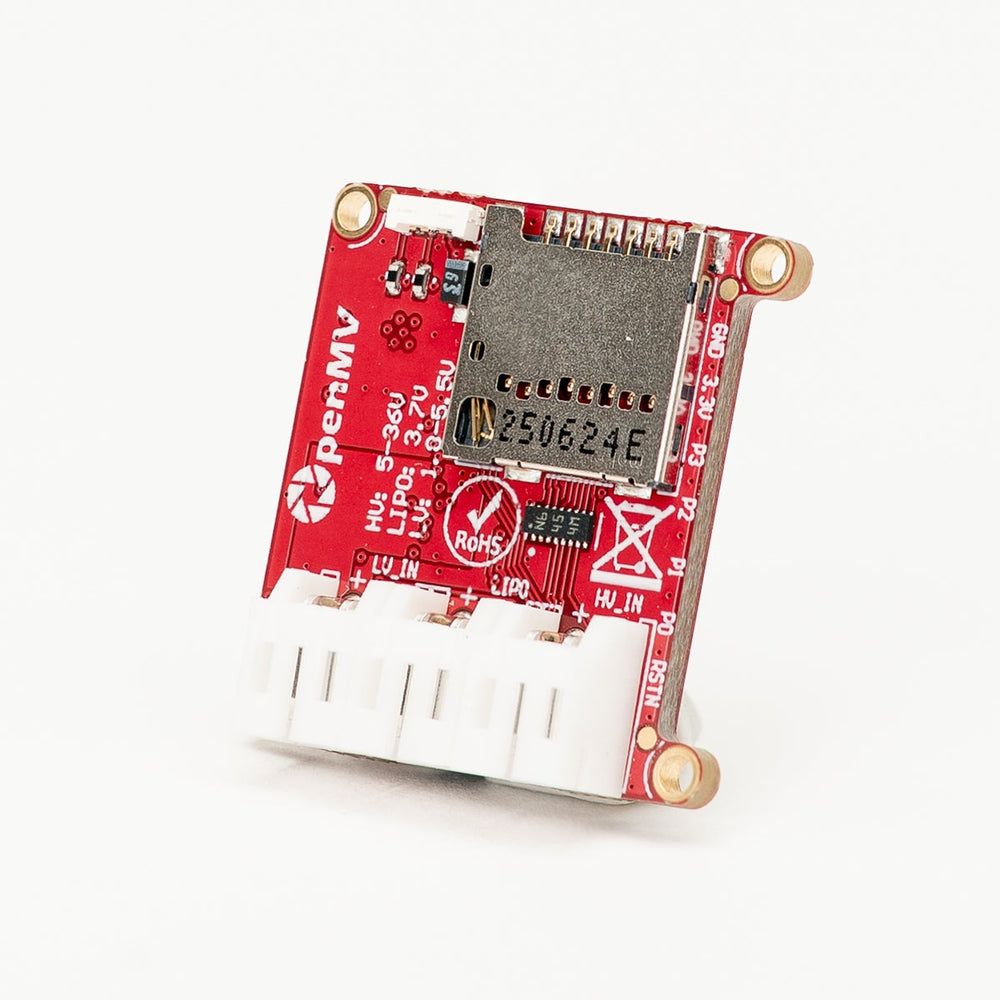

AE3 Battery Shield

5–36 V, 1.8–5.5 V, or 3.7 V Li‑Po power for the AE3 plus an SPI microSD socket.

Explore →

Äldre shields

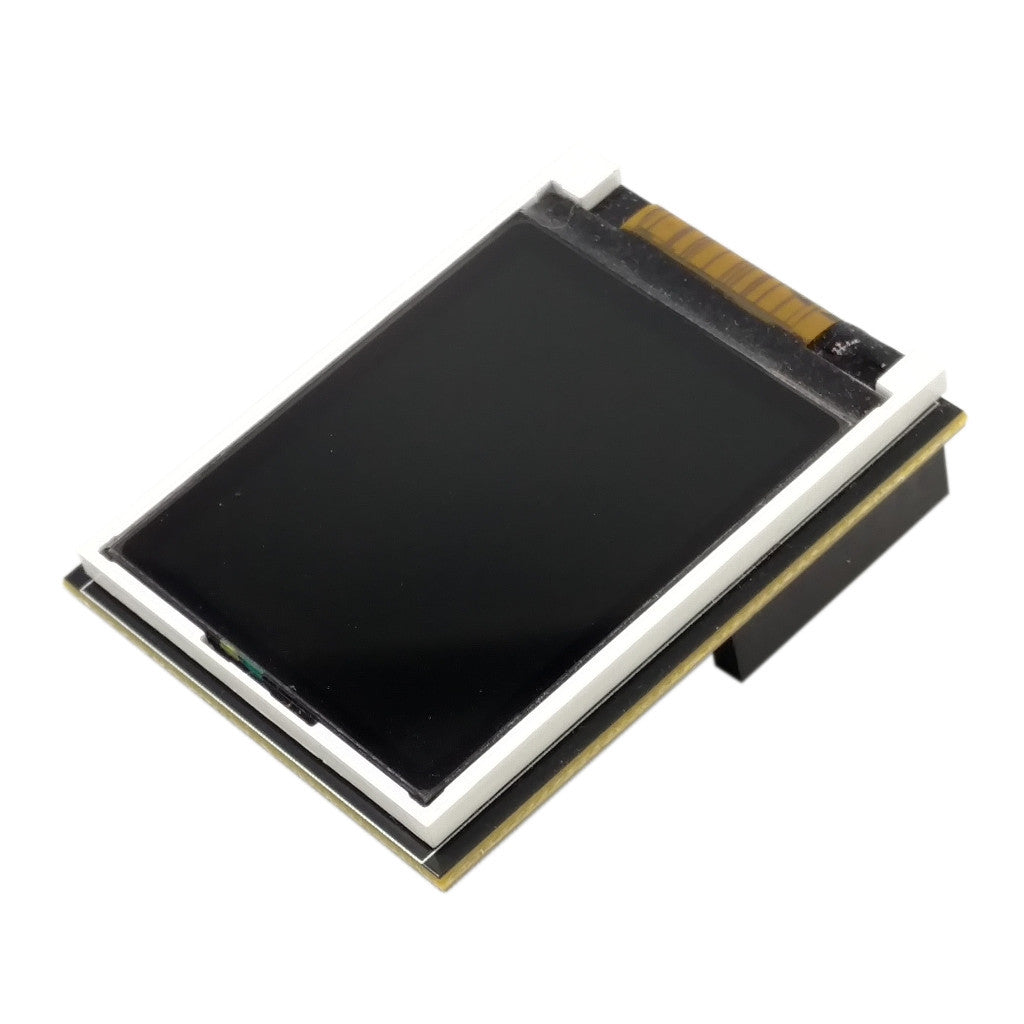

LCD Shield

1.8" 128×160 SPI TFT for stand-alone preview.

Explore →

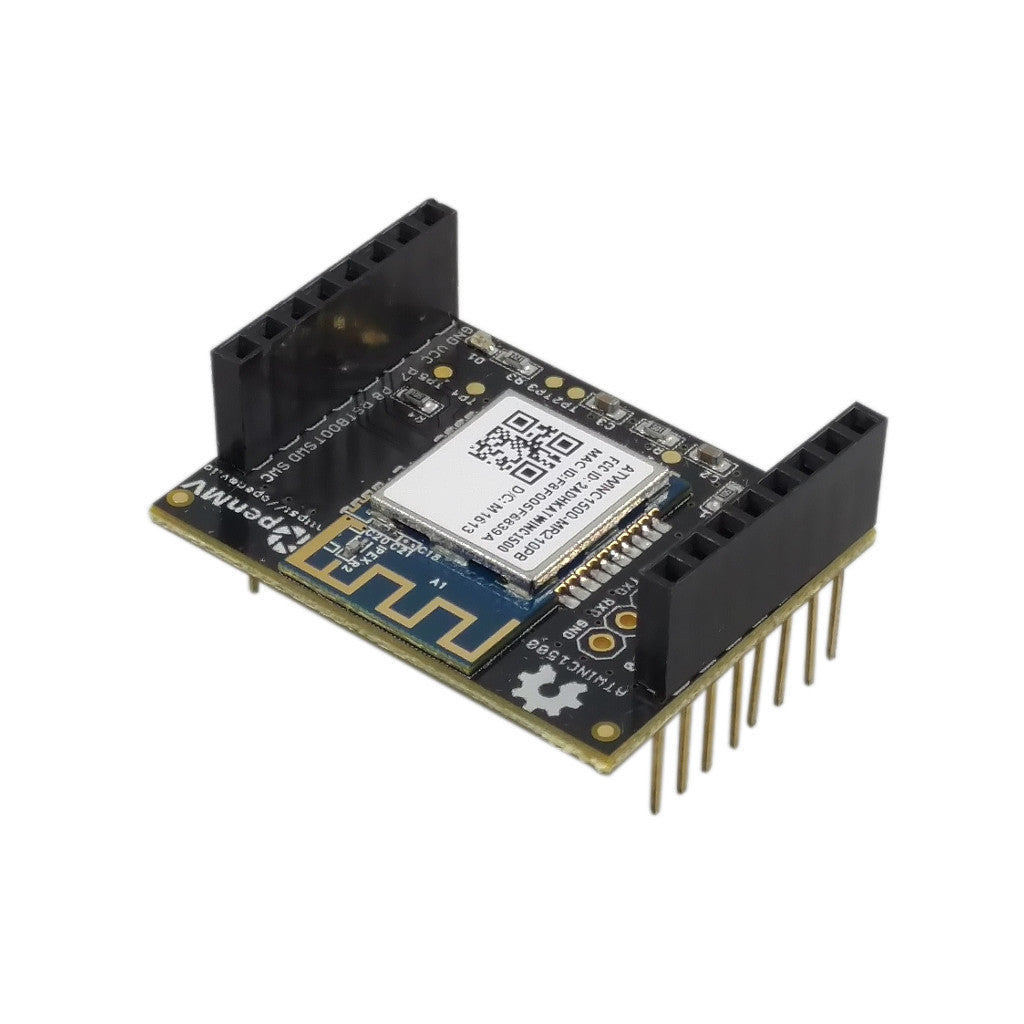

WiFi Shield

2.4 GHz Wi-Fi for OpenMV Cams without on-board networking.

Explore →

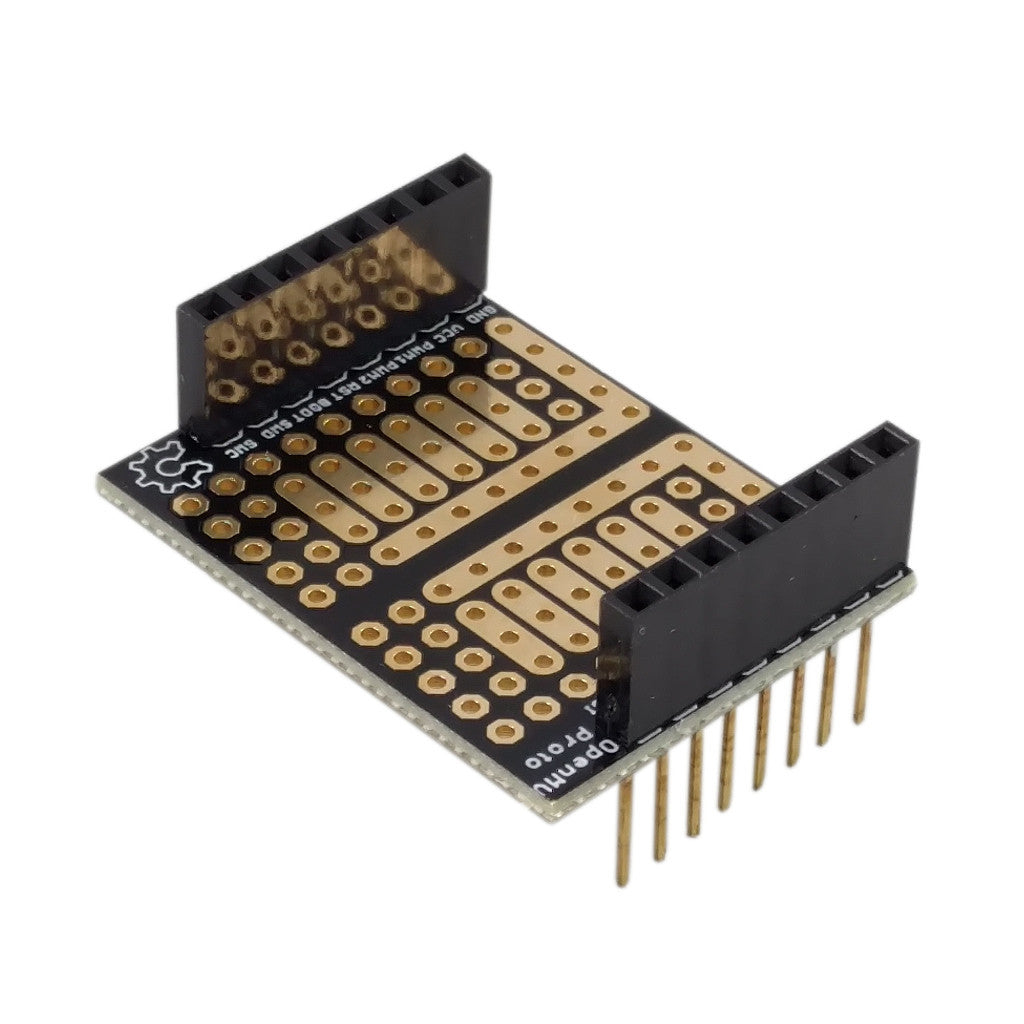

Proto Shield

10×10 through-hole prototyping area with 3.3V and GND rails.

Explore →

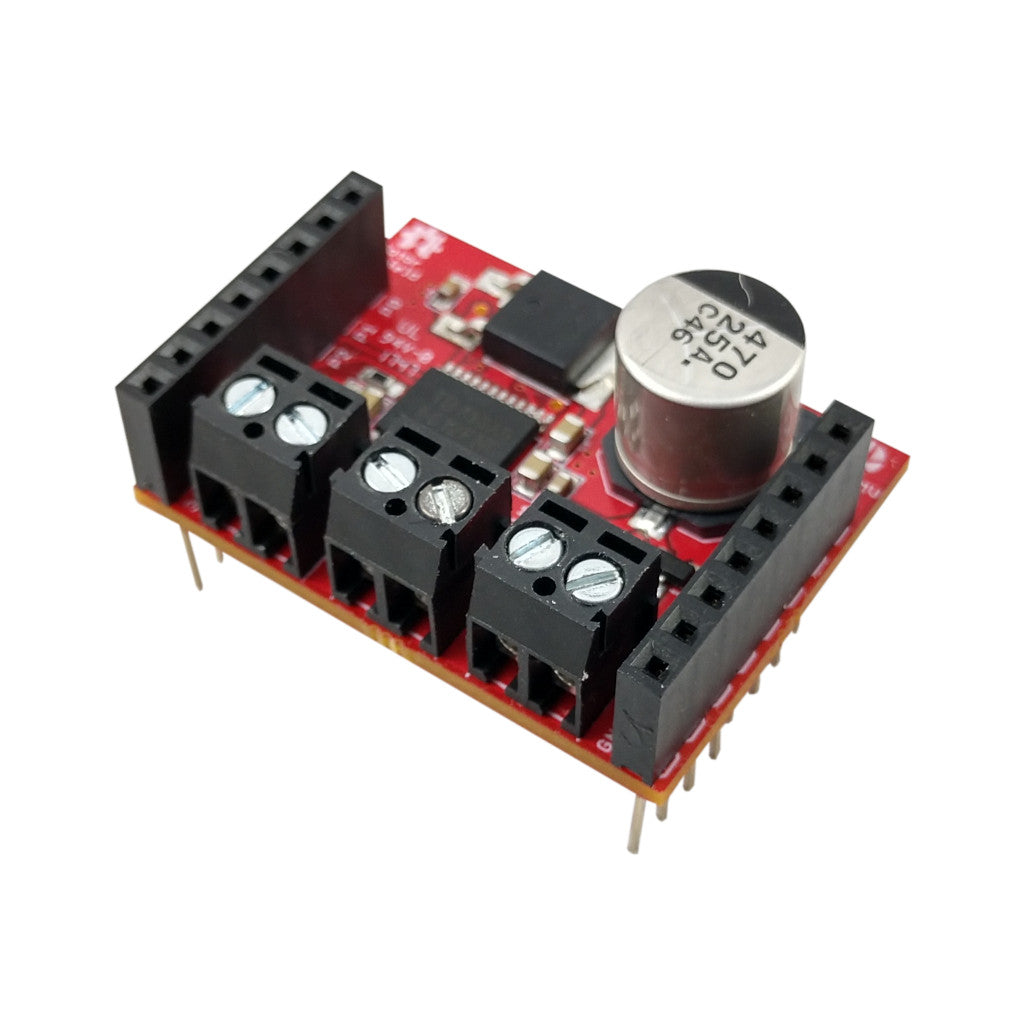

Motor Shield

TB6612FNG dual-channel H-bridge driver with a 5V regulator for battery power.

Explore →

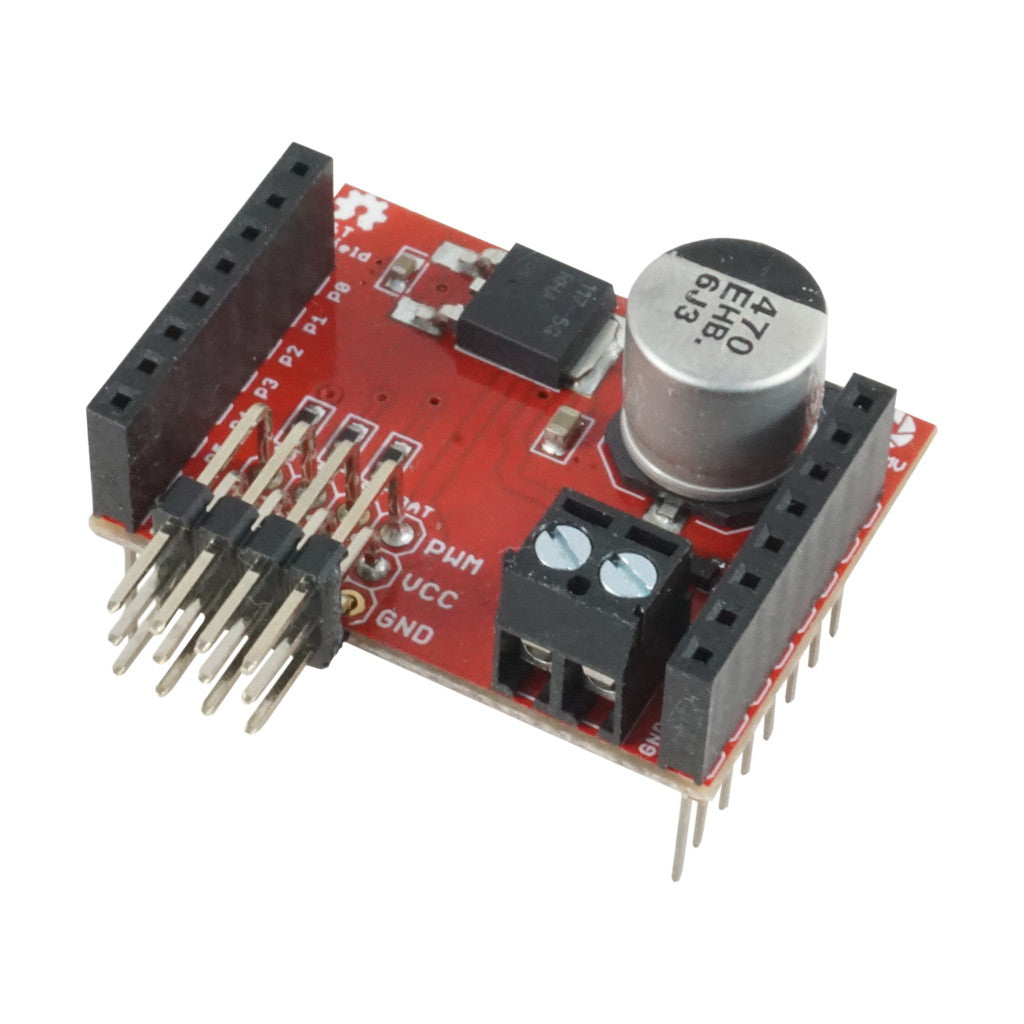

Pan and Tilt Shield

Three servo channels with a 5V regulator powering the camera and servos.

Explore →

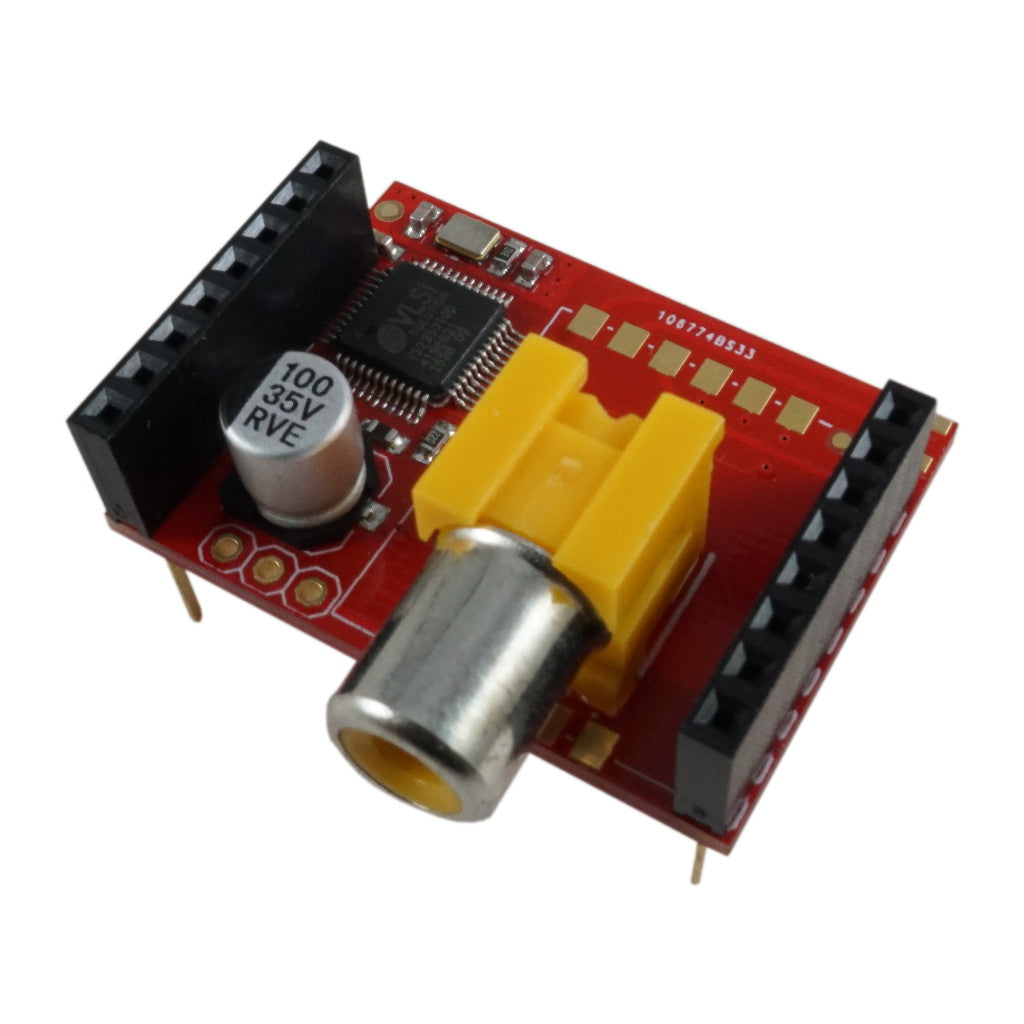

TV Shield

352×240 NTSC analog video output via a VS23S010 SPI-to-NTSC chip.

Explore →

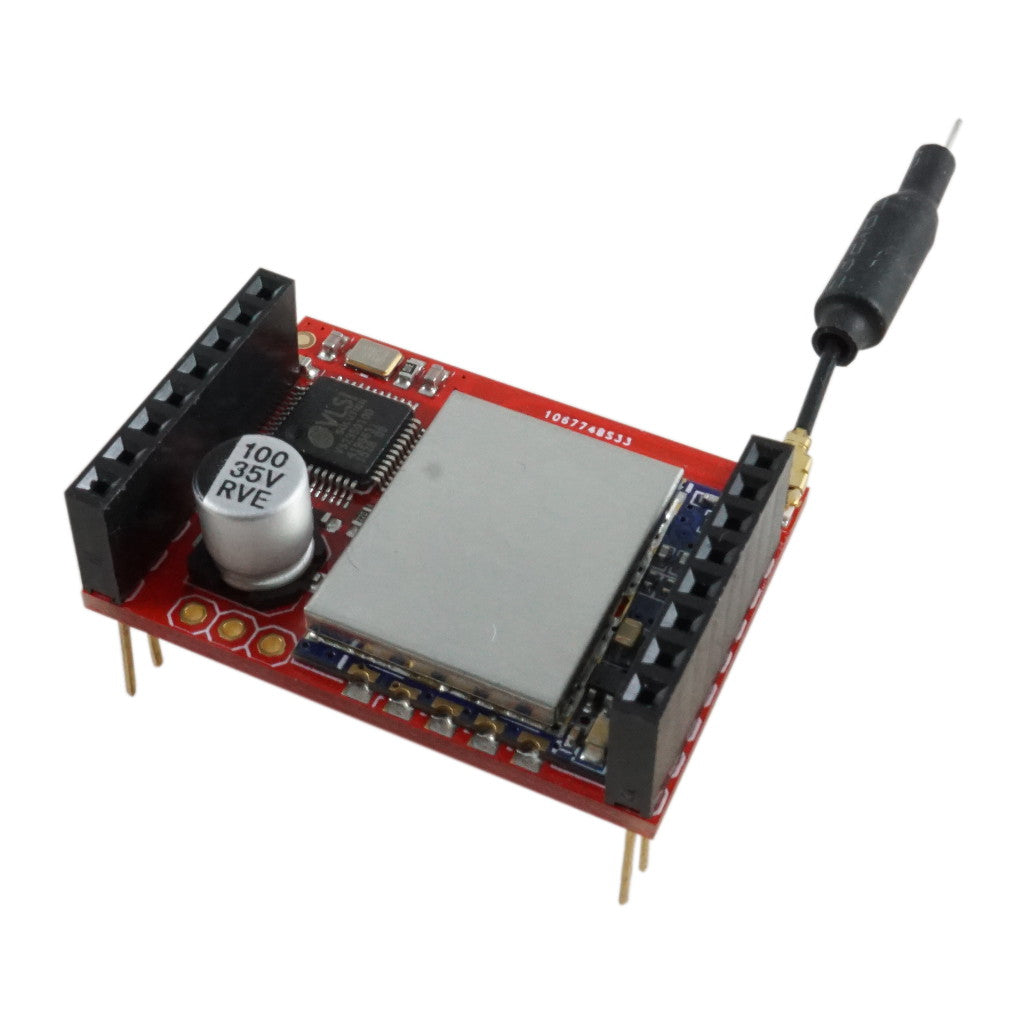

Wireless TV Shield

NTSC video output with a 5.8 GHz analog FPV transmitter on board.

Explore →

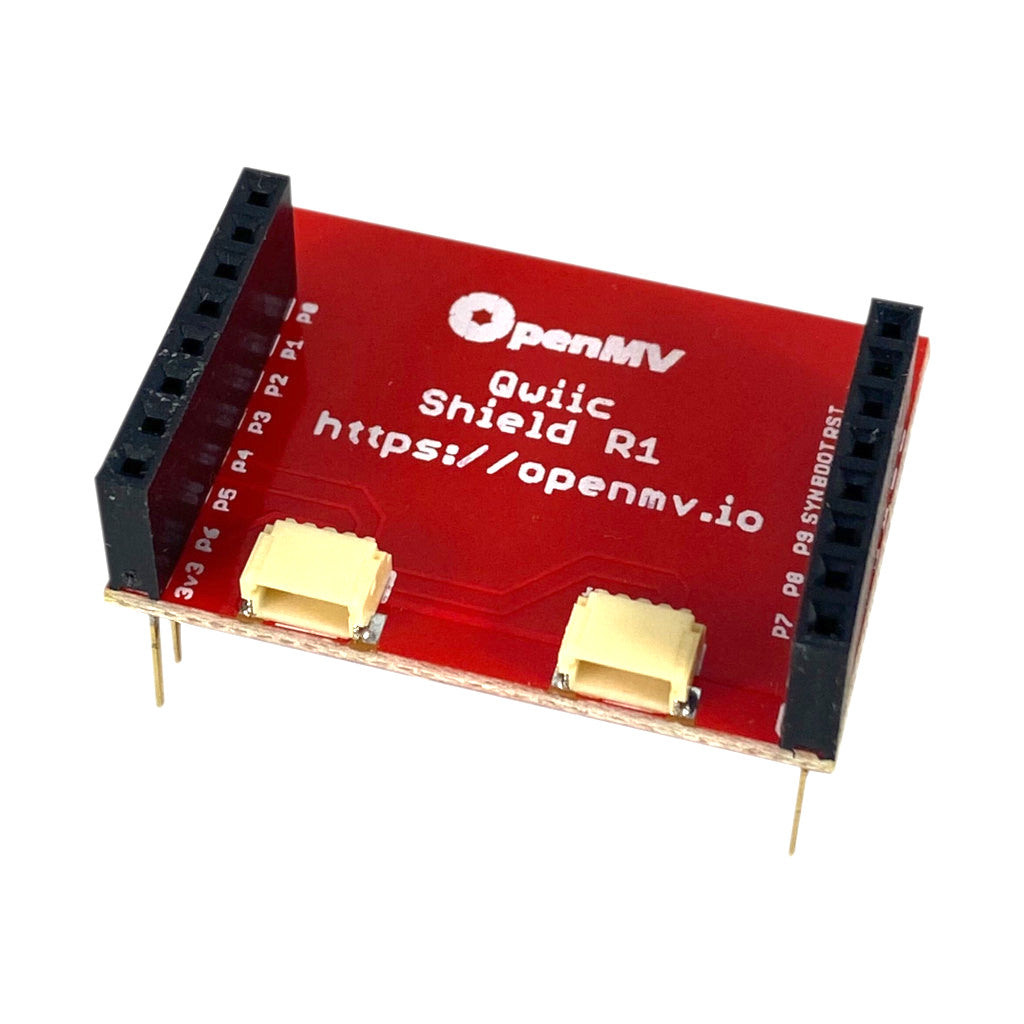

QWIIC Shield

Two Qwiic JST-SH connectors for daisy-chained I2C peripherals.

Explore →

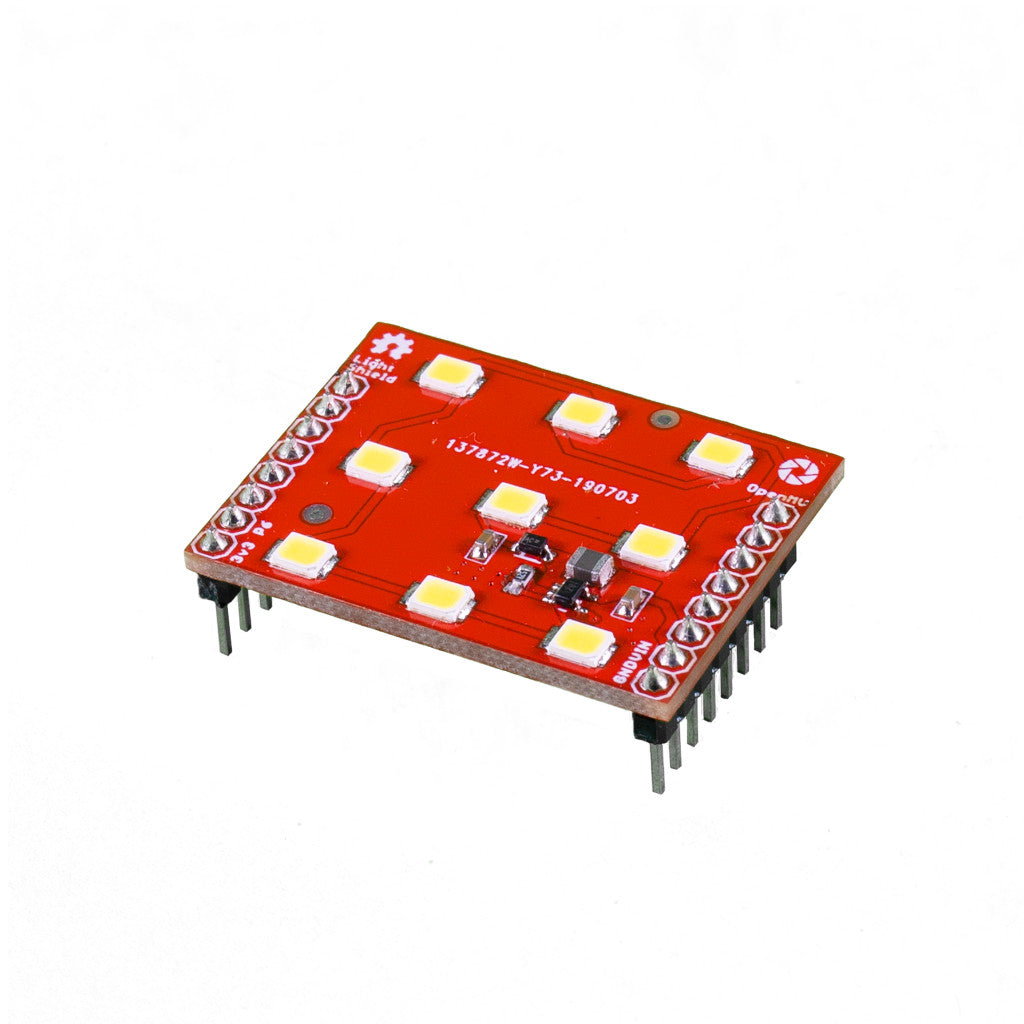

Light Shield

Nine high-power white LEDs with a TPS61169 driver and DAC/PWM dimming.

Explore →

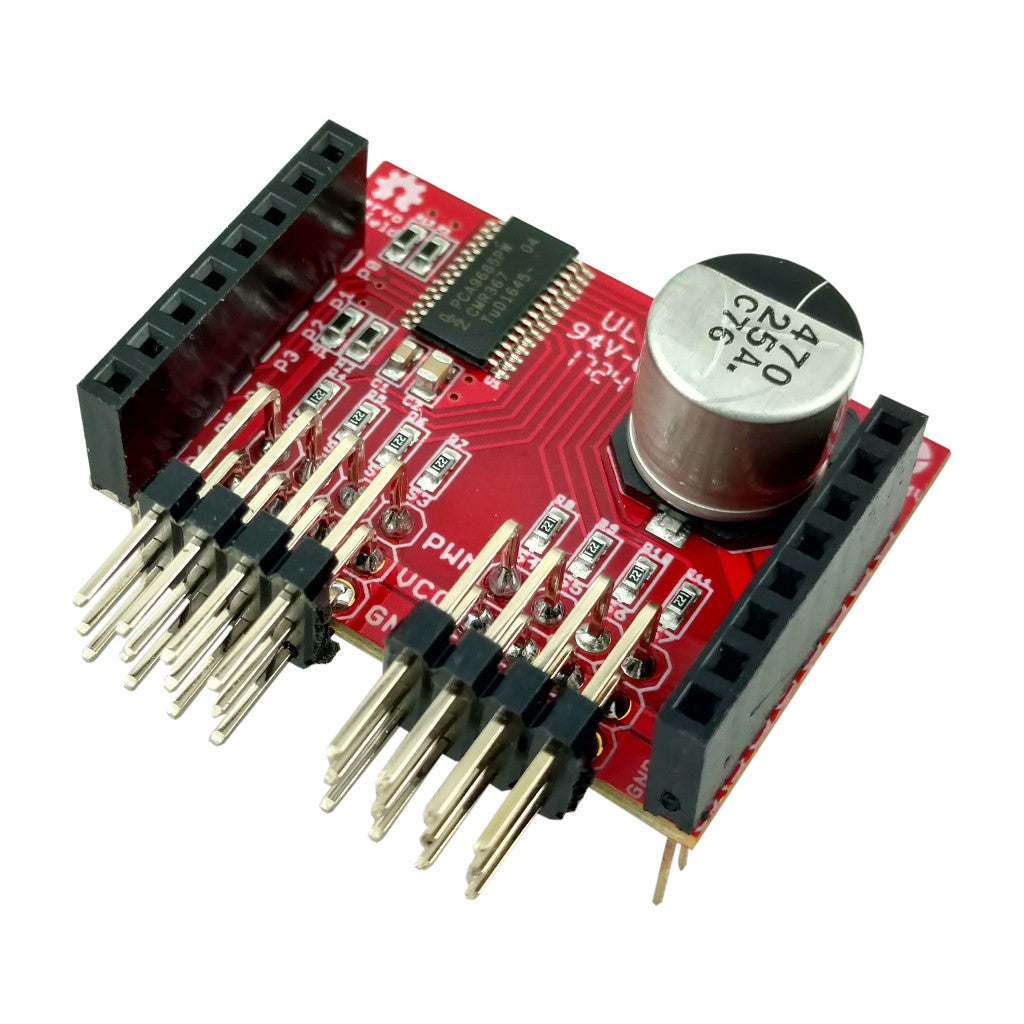

Servo Shield

Eight-channel PCA9685 servo / PWM controller over I2C.

Explore →

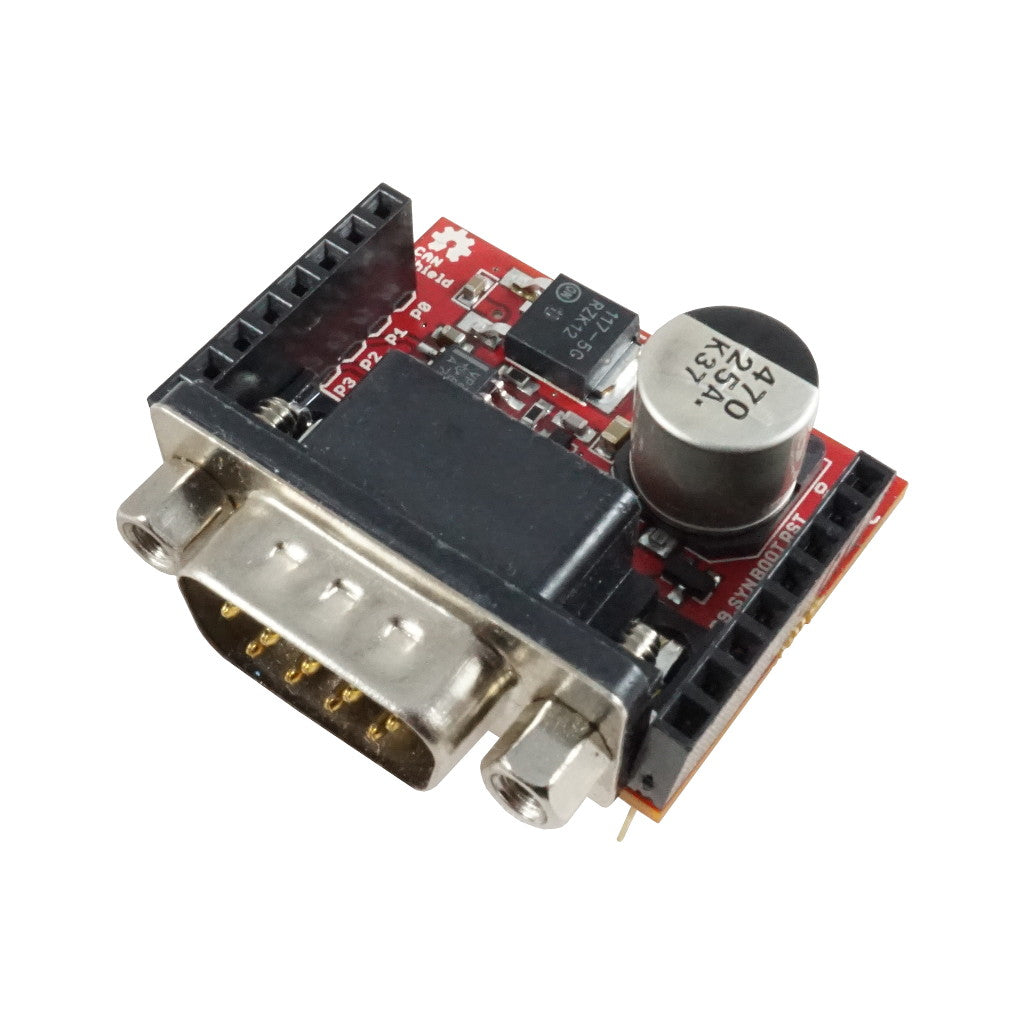

CAN Shield

1 Mb/s CAN bus with a DB9 connector and a 12V regulator.

Explore →

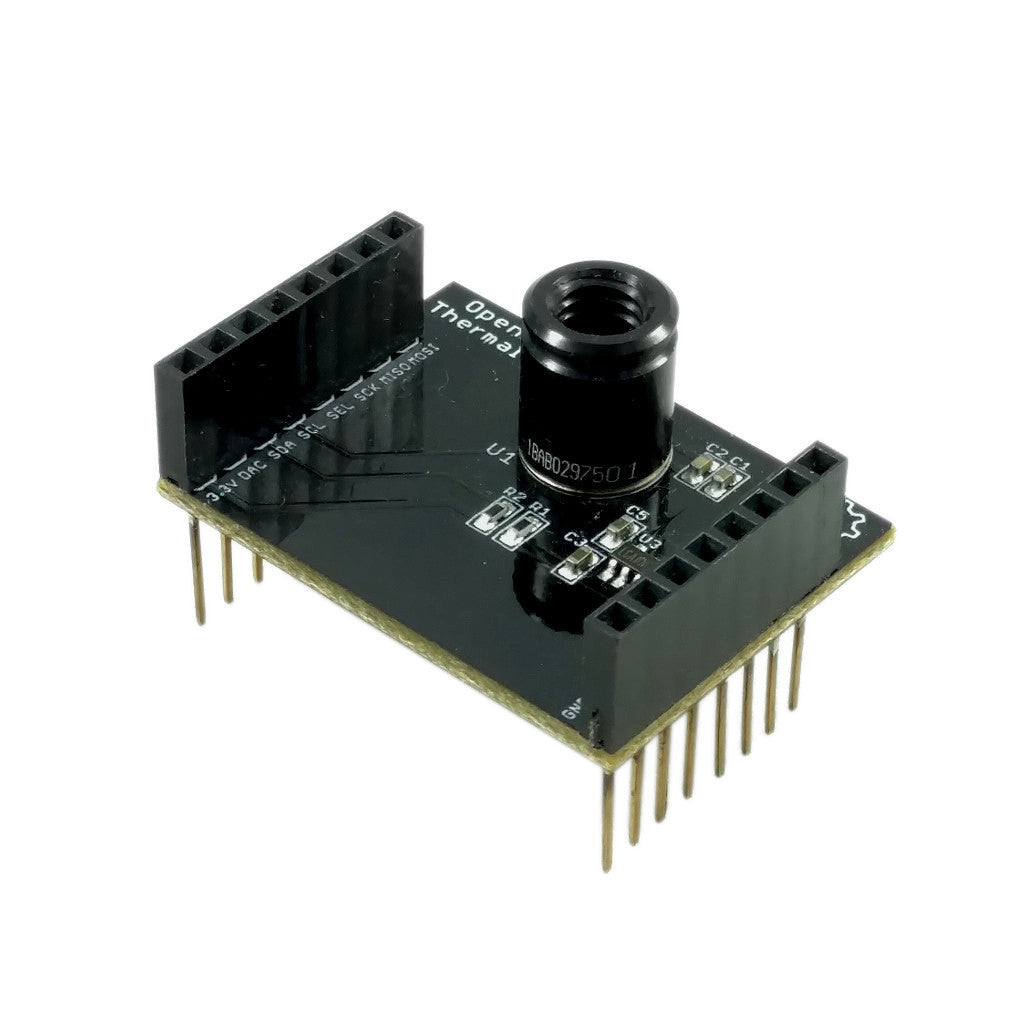

Thermopile Shield

16×4 thermal-sensor array with per-pixel temperature.

Explore →
