OpenMV 擴充板¶
可插接到 OpenMV Cam 上的擴充板，為其加上網路連線、馬達控制、顯示器、感測器等更多功能。每一頁都會介紹該擴充板的功能、主要規格，以及從 MicroPython 驅動它的 API。
現代擴充板¶

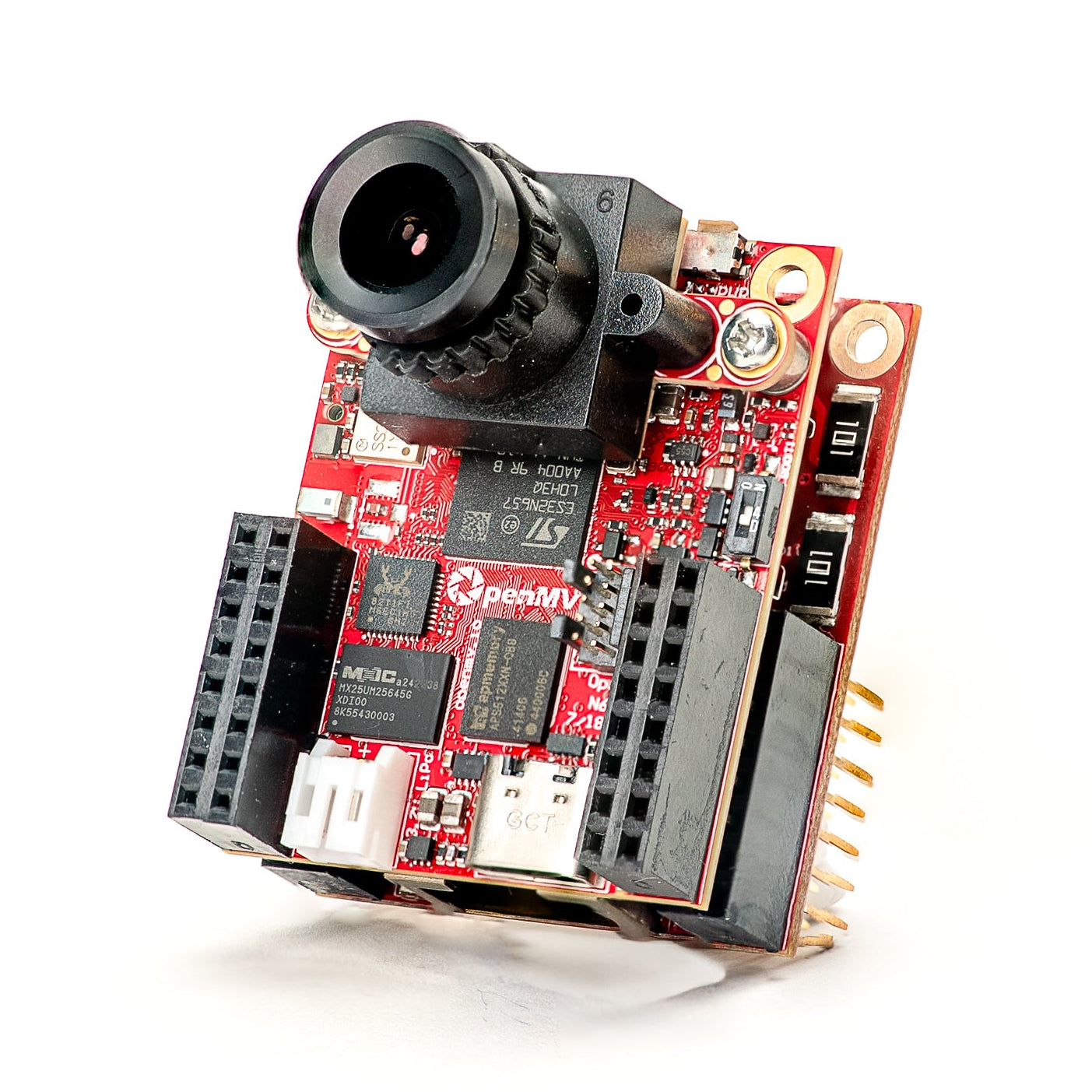

Gigabit PoE Shield
Gigabit Ethernet with PoE for higher-bandwidth streaming.
Explore →

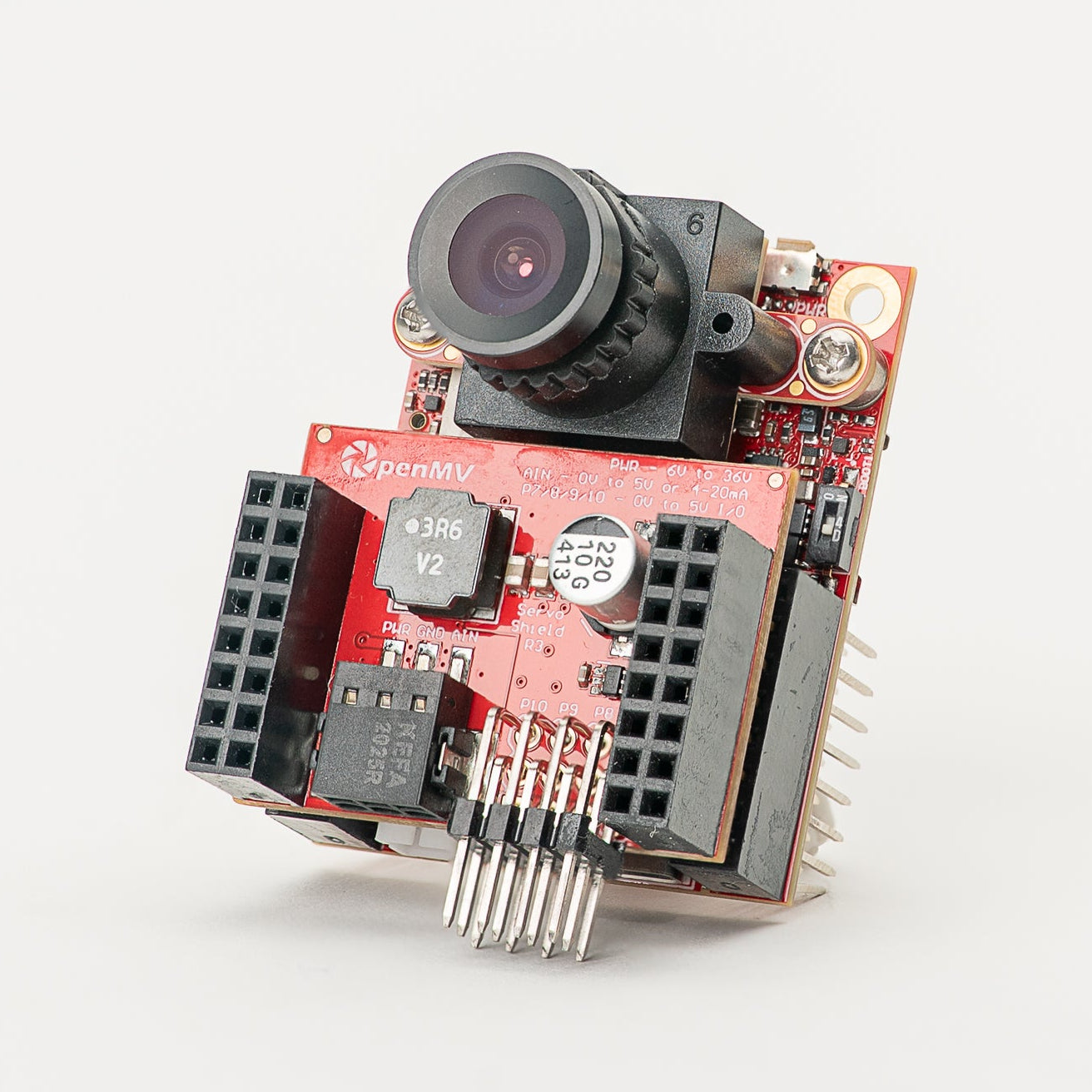

Servo Shield
Drive up to 4 servos drawing up to 5A while powering the camera, 6–36V input.
Explore →

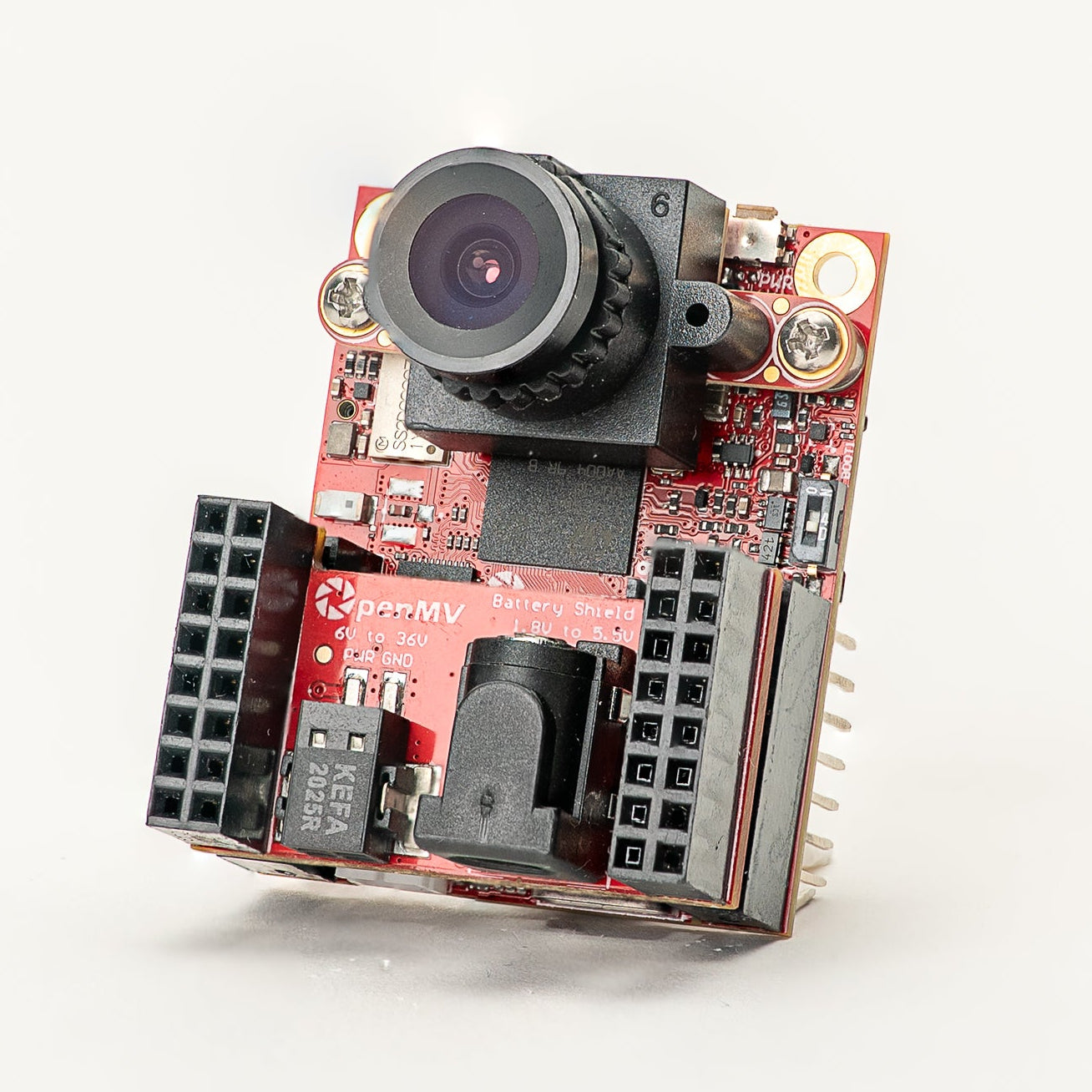

Battery Shield
1.8–5.5V battery input via a DC barrel jack, plus a 6–36V wide input.
Explore →

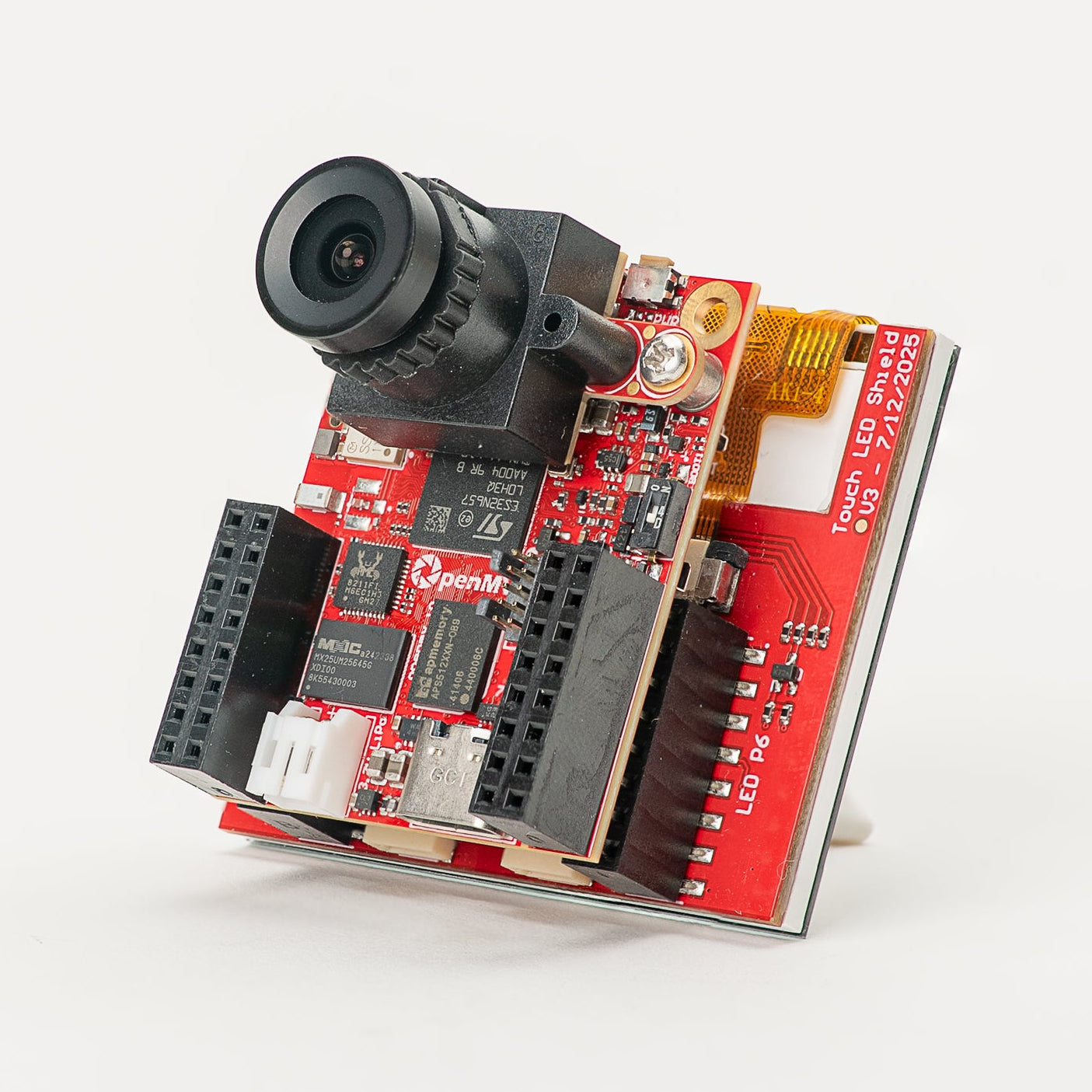

Touch LCD Shield
2.3" 320×240 SPI LCD with capacitive multi-touch and Qwiic.
Explore →

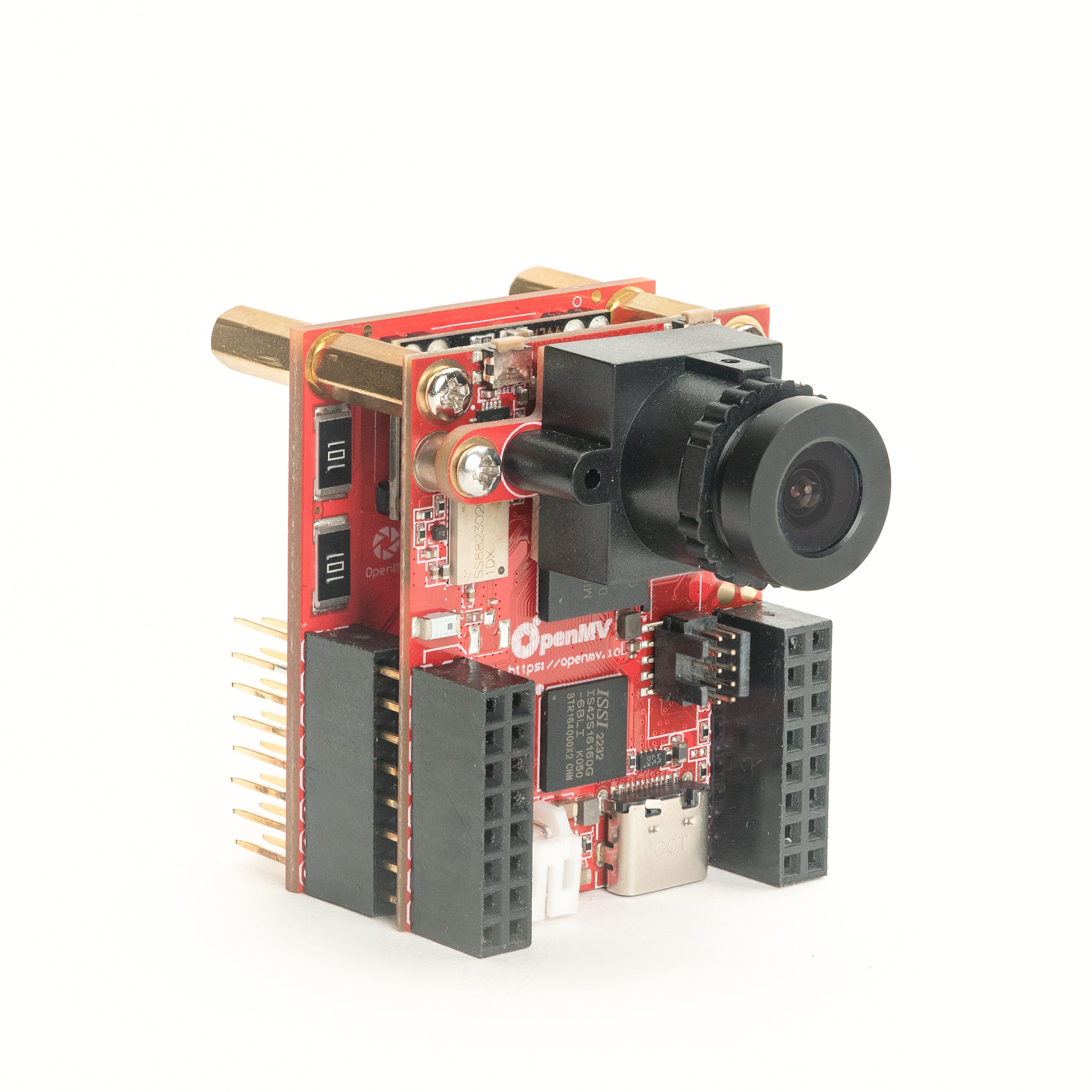

PoE Shield
10/100 Ethernet with Power-over-Ethernet.
Explore →

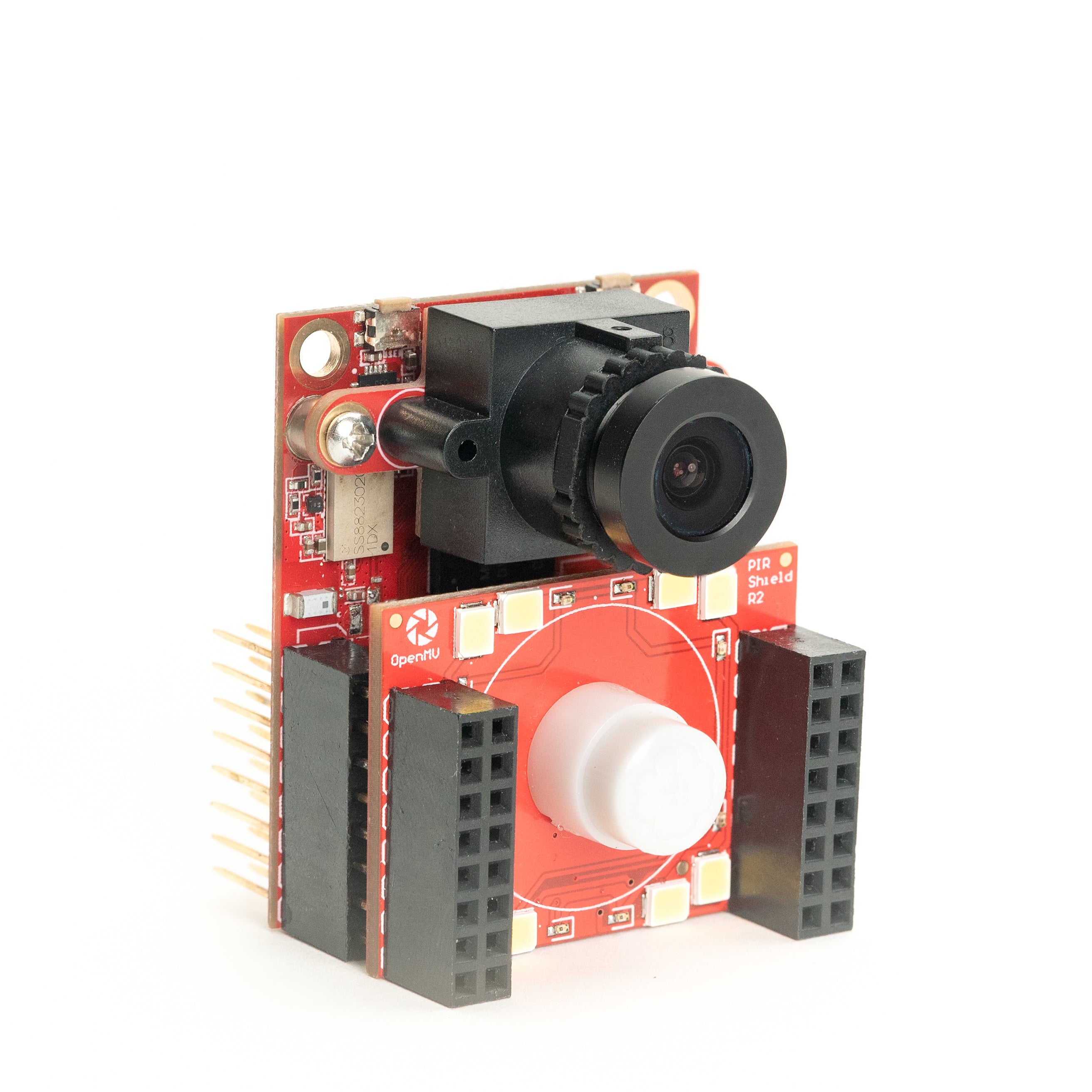

PIR Shield
6µA standby motion trigger plus white and 850 nm IR illumination.
Explore →

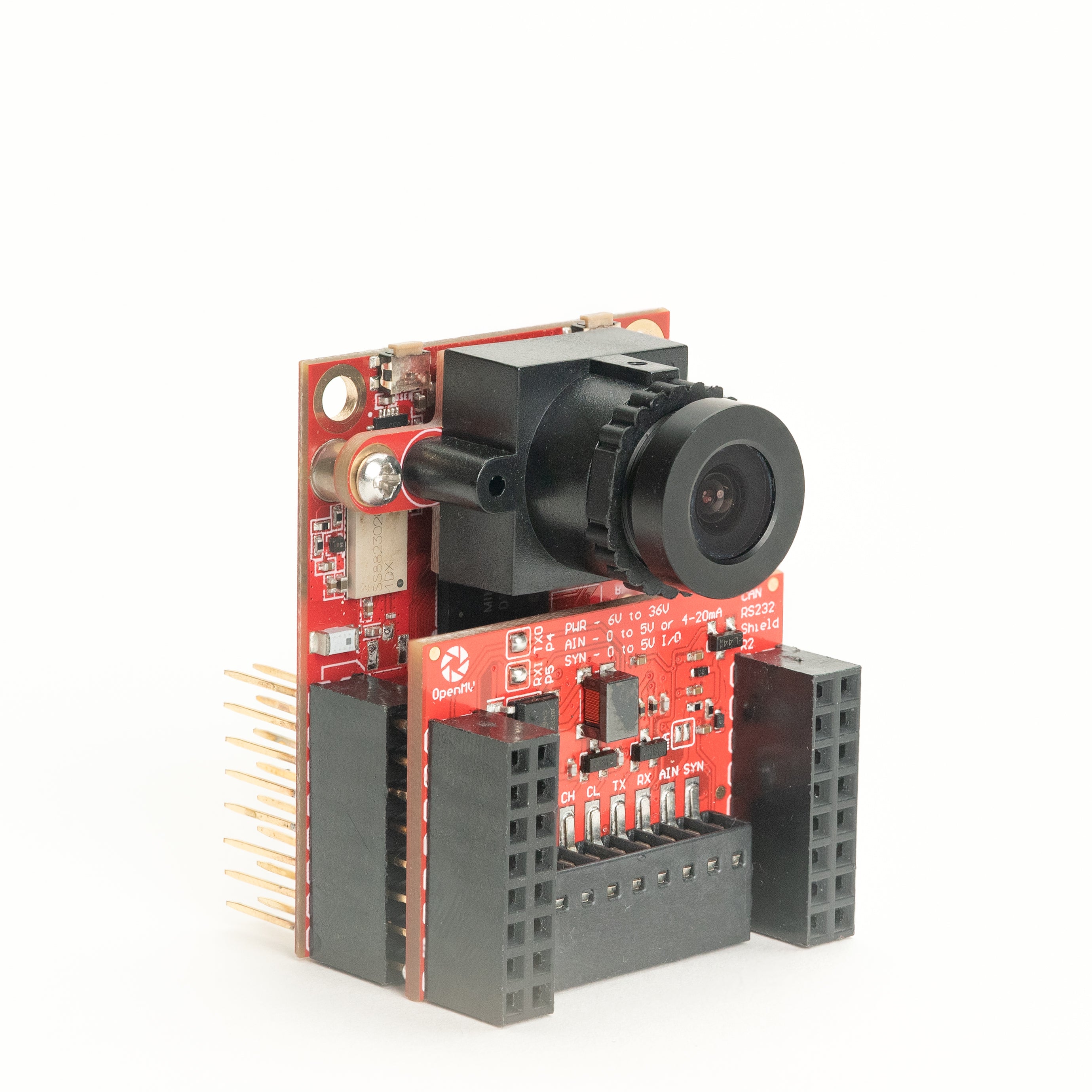

CAN/RS232 Shield
8 Mb/s CAN-FD plus 1 Mb/s RS-232 for vehicles and legacy serial.
Explore →

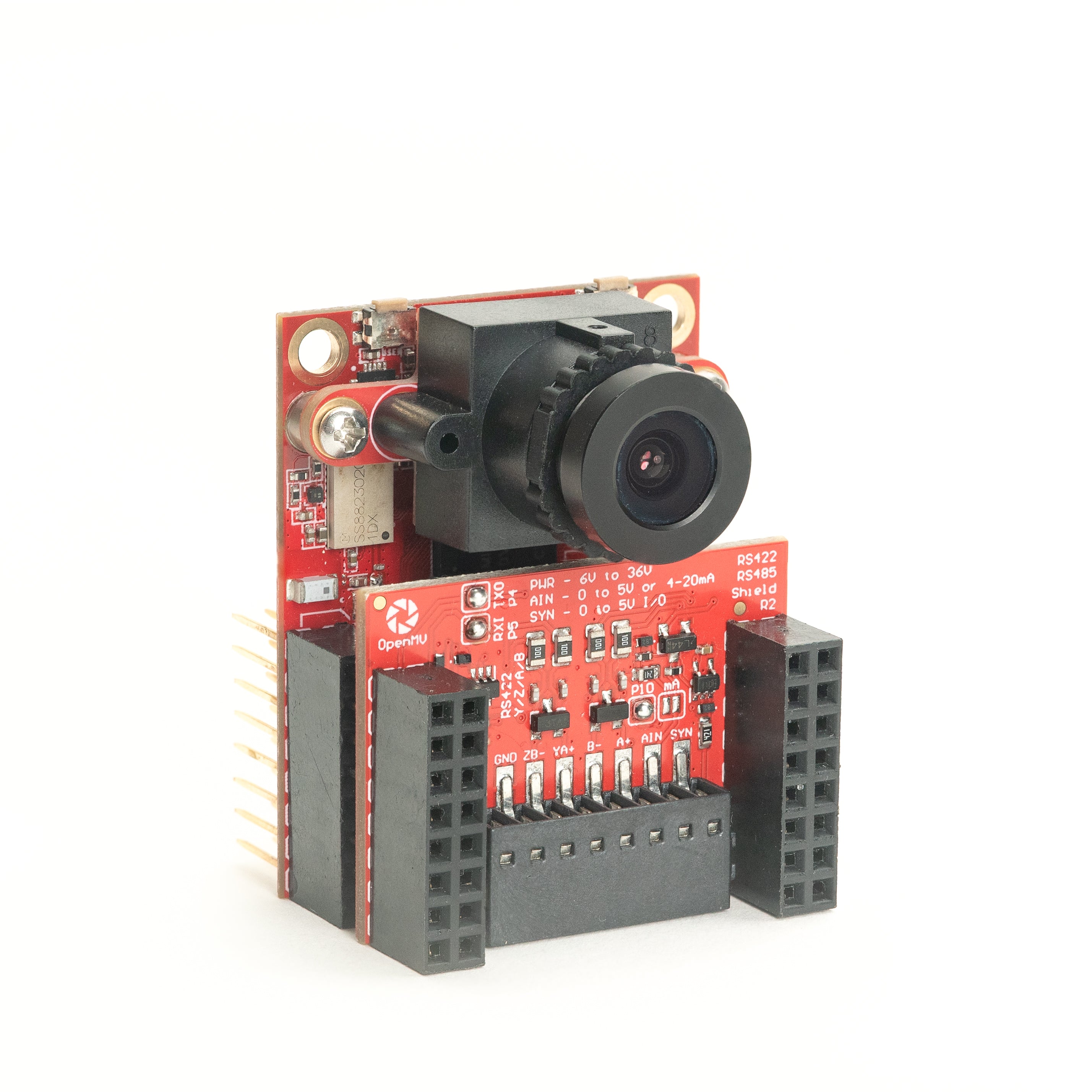

RS422/RS485 Shield
10 Mb/s differential serial for long-distance industrial buses.
Explore →
Driver Shield
Dual 3A motor drivers or quad 1.5A line drivers, 6–36V.
Explore →
Relay Shield
Dual 60 W relays for AC/DC load switching, 6–36V input.
Explore →AE3 配件¶
舊款擴充板¶
LCD Shield
1.8" 128×160 SPI TFT for stand-alone preview.
Explore →
WiFi Shield
2.4 GHz Wi-Fi for OpenMV Cams without on-board networking.
Explore →
Proto Shield
10×10 through-hole prototyping area with 3.3V and GND rails.
Explore →
Motor Shield
TB6612FNG dual-channel H-bridge driver with a 5V regulator for battery power.
Explore →
Pan and Tilt Shield
Three servo channels with a 5V regulator powering the camera and servos.
Explore →
TV Shield
352×240 NTSC analog video output via a VS23S010 SPI-to-NTSC chip.
Explore →
Wireless TV Shield
NTSC video output with a 5.8 GHz analog FPV transmitter on board.
Explore →
QWIIC Shield
Two Qwiic JST-SH connectors for daisy-chained I2C peripherals.
Explore →
Light Shield
Nine high-power white LEDs with a TPS61169 driver and DAC/PWM dimming.
Explore →
Servo Shield
Eight-channel PCA9685 servo / PWM controller over I2C.
Explore →
CAN Shield
1 Mb/s CAN bus with a DB9 connector and a 12V regulator.
Explore →
Thermopile Shield
16×4 thermal-sensor array with per-pixel temperature.
Explore →
