Shields OpenMV¶

Placas complementares que se conectam a uma OpenMV Cam, estendendo-a com rede, controle de motores, displays, sensores e mais. Cada página descreve o que o shield faz, as principais especificações e as APIs para controlá-lo a partir do MicroPython.

Shields modernos¶

Gigabit PoE Shield

Gigabit PoE Shield

Gigabit Ethernet with PoE for higher-bandwidth streaming.

Servo Shield

Drive up to 4 servos drawing up to 5A while powering the camera, 6–36V input.

Battery Shield

1.8–5.5V battery input via a DC barrel jack, plus a 6–36V wide input.

Touch LCD Shield

Touch LCD Shield

2.3" 320×240 SPI LCD with capacitive multi-touch and Qwiic.

PoE Shield

10/100 Ethernet with Power-over-Ethernet.

PIR Shield

6µA standby motion trigger plus white and 850 nm IR illumination.

CAN/RS232 Shield

CAN/RS232 Shield

8 Mb/s CAN-FD plus 1 Mb/s RS-232 for vehicles and legacy serial.

RS422/RS485 Shield

RS422/RS485 Shield

10 Mb/s differential serial for long-distance industrial buses.

Driver Shield

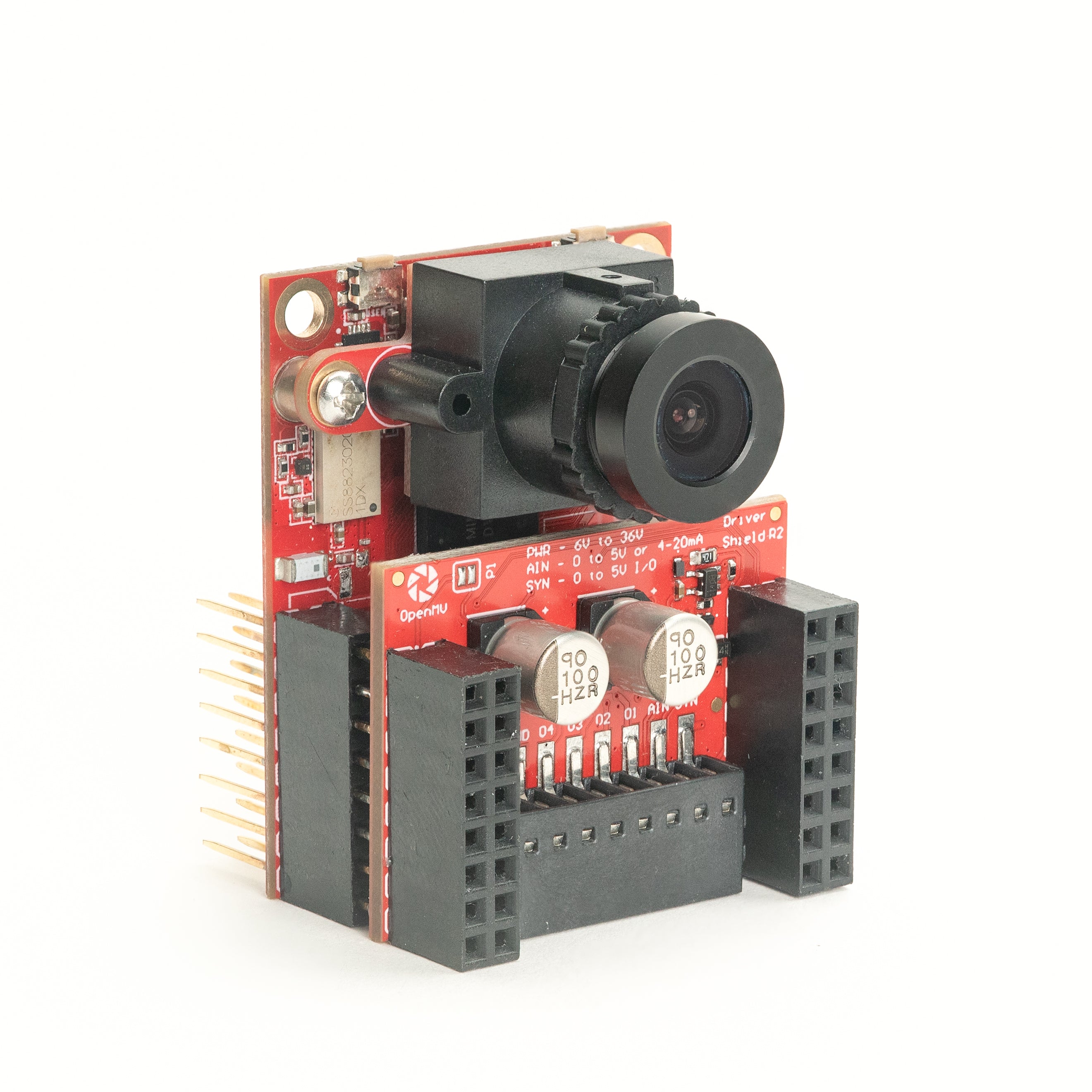

Dual 3A motor drivers or quad 1.5A line drivers, 6–36V.

Relay Shield

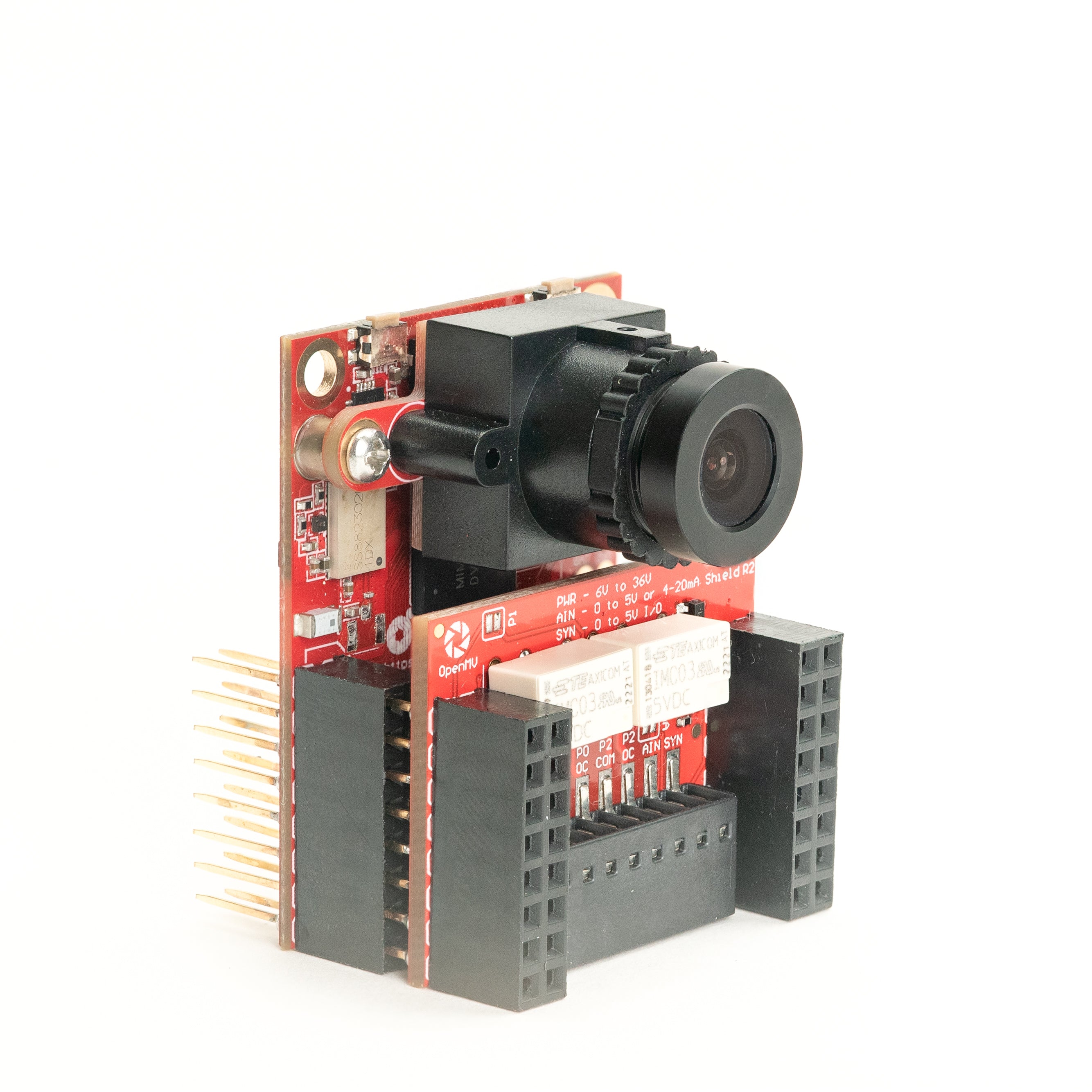

Dual 60 W relays for AC/DC load switching, 6–36V input.

Acessórios AE3¶

AE3 OLED Breakout

AE3 OLED Breakout

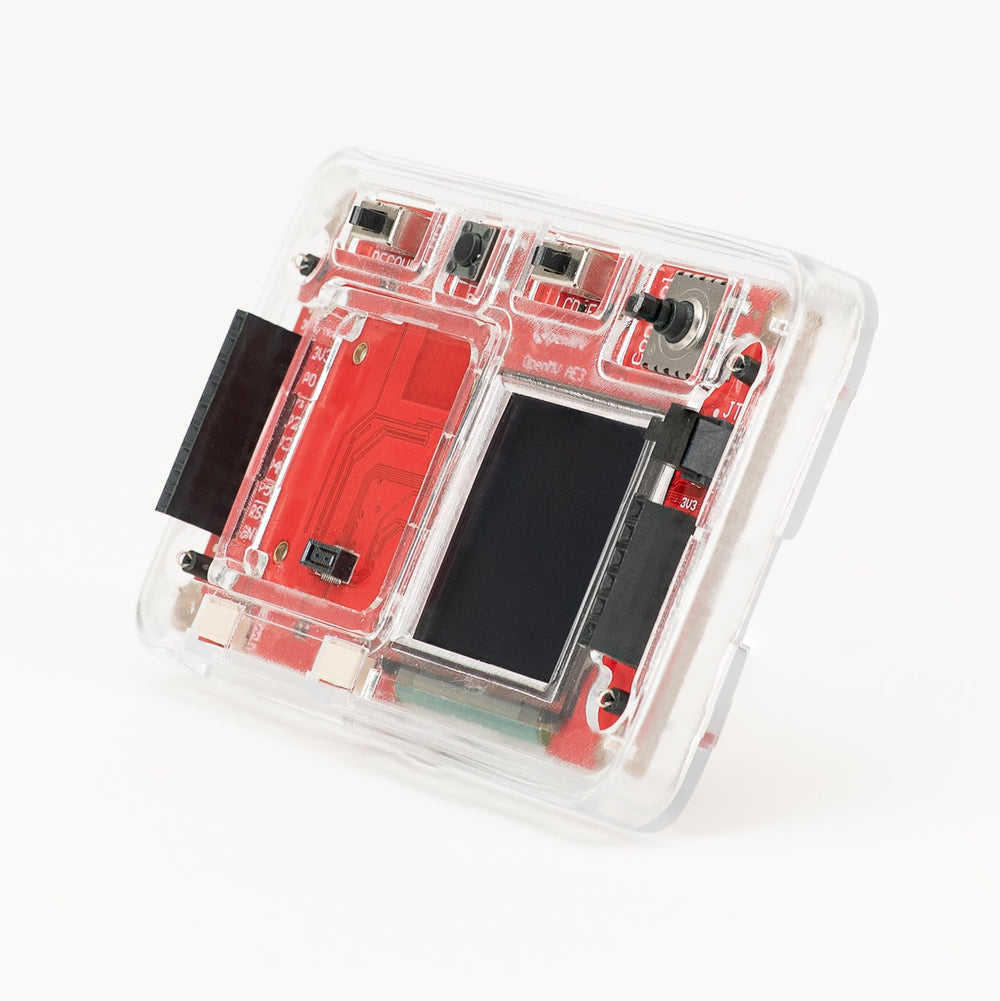

128×128 RGB OLED, 5‑way joystick, Qwiic, and a 10‑pin ARM SWD header.

AE3 Battery Shield

AE3 Battery Shield

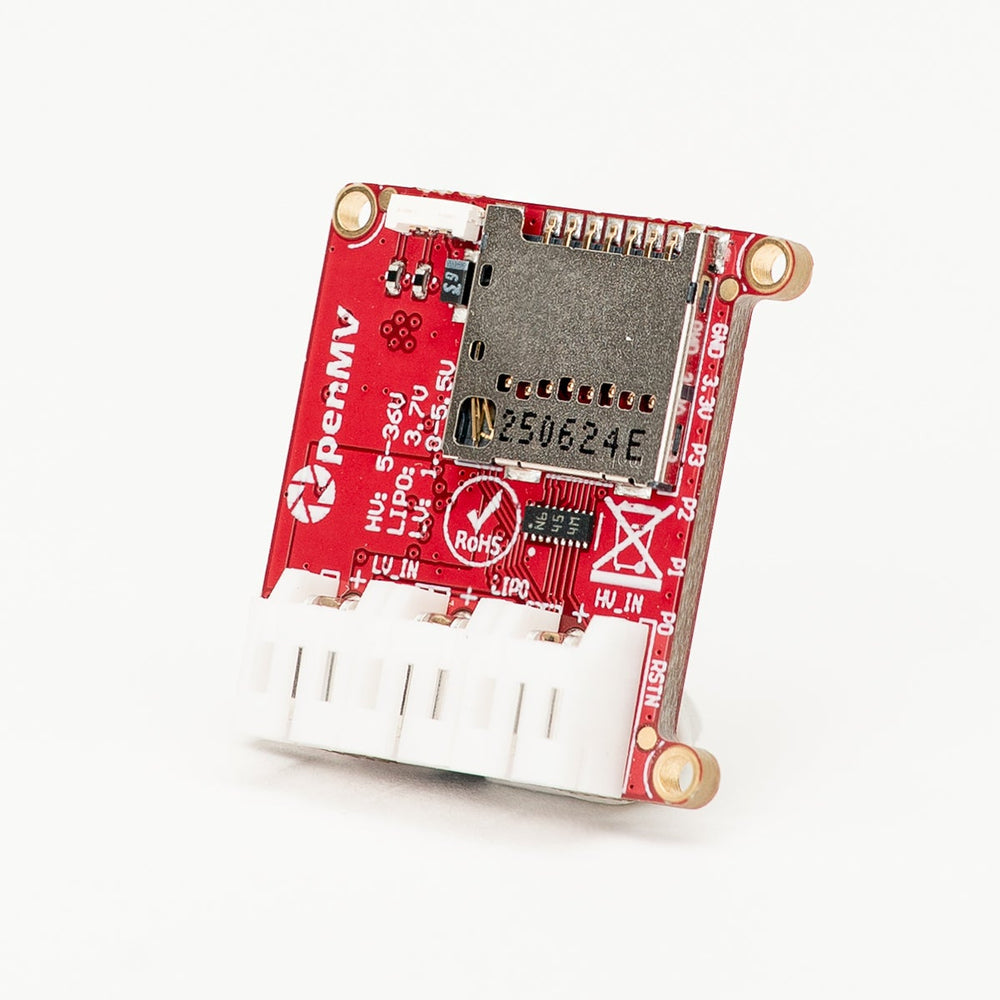

5–36 V, 1.8–5.5 V, or 3.7 V Li‑Po power for the AE3 plus an SPI microSD socket.

Shields legados¶

LCD Shield

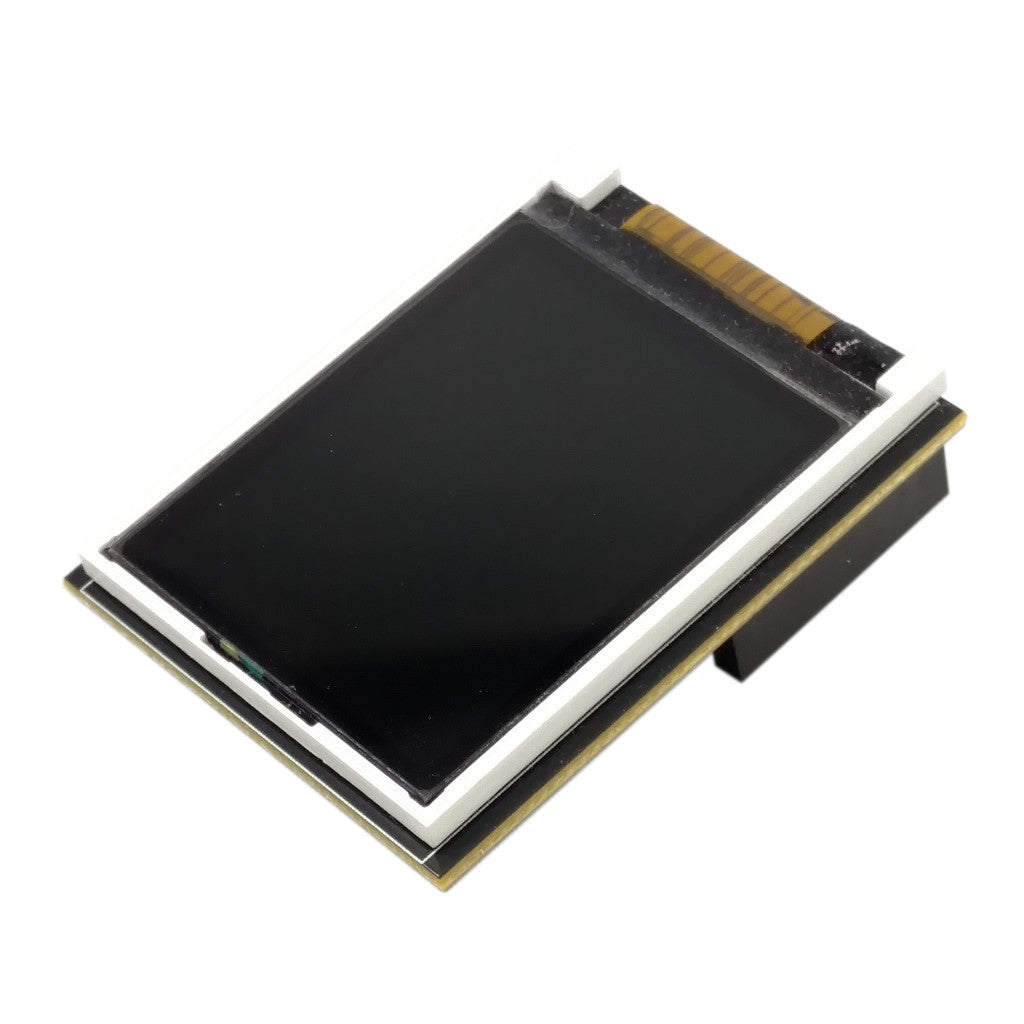

1.8" 128×160 SPI TFT for stand-alone preview.

WiFi Shield

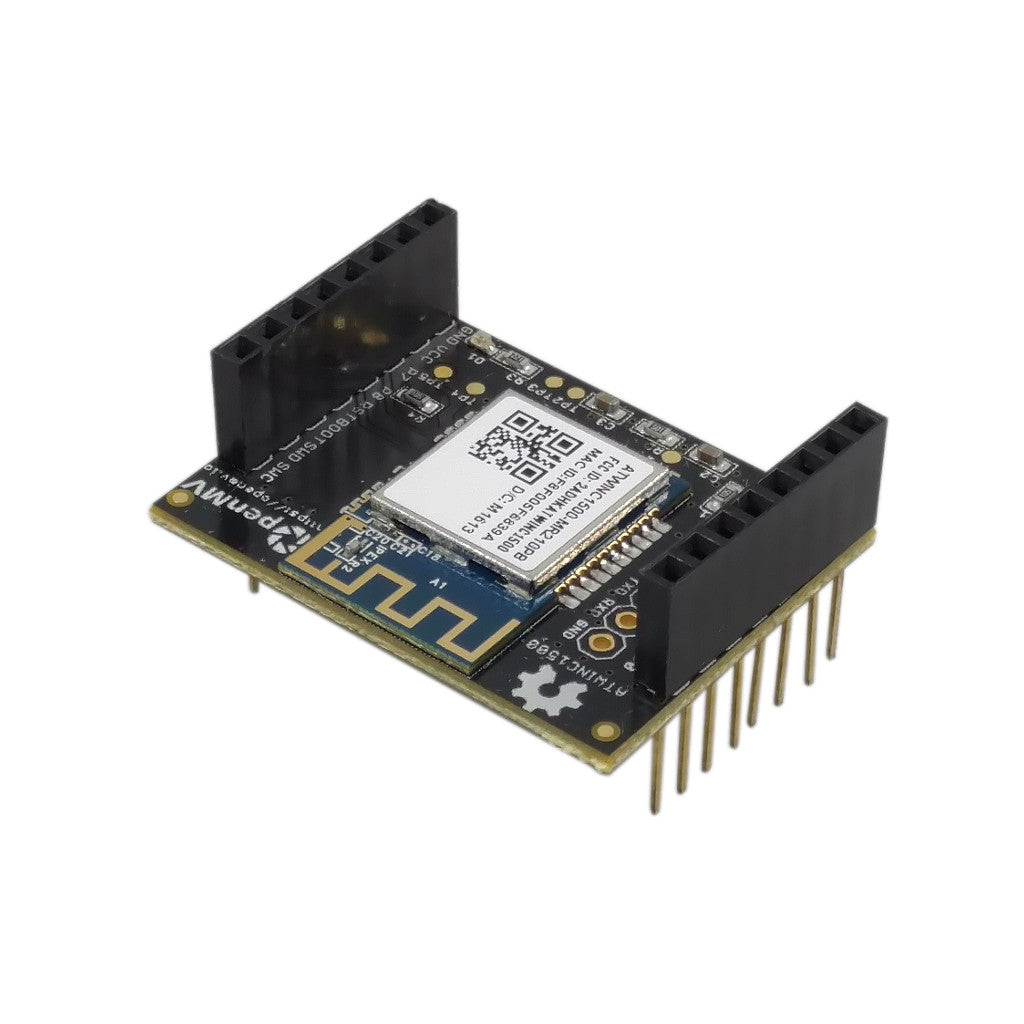

2.4 GHz Wi-Fi for OpenMV Cams without on-board networking.

Proto Shield

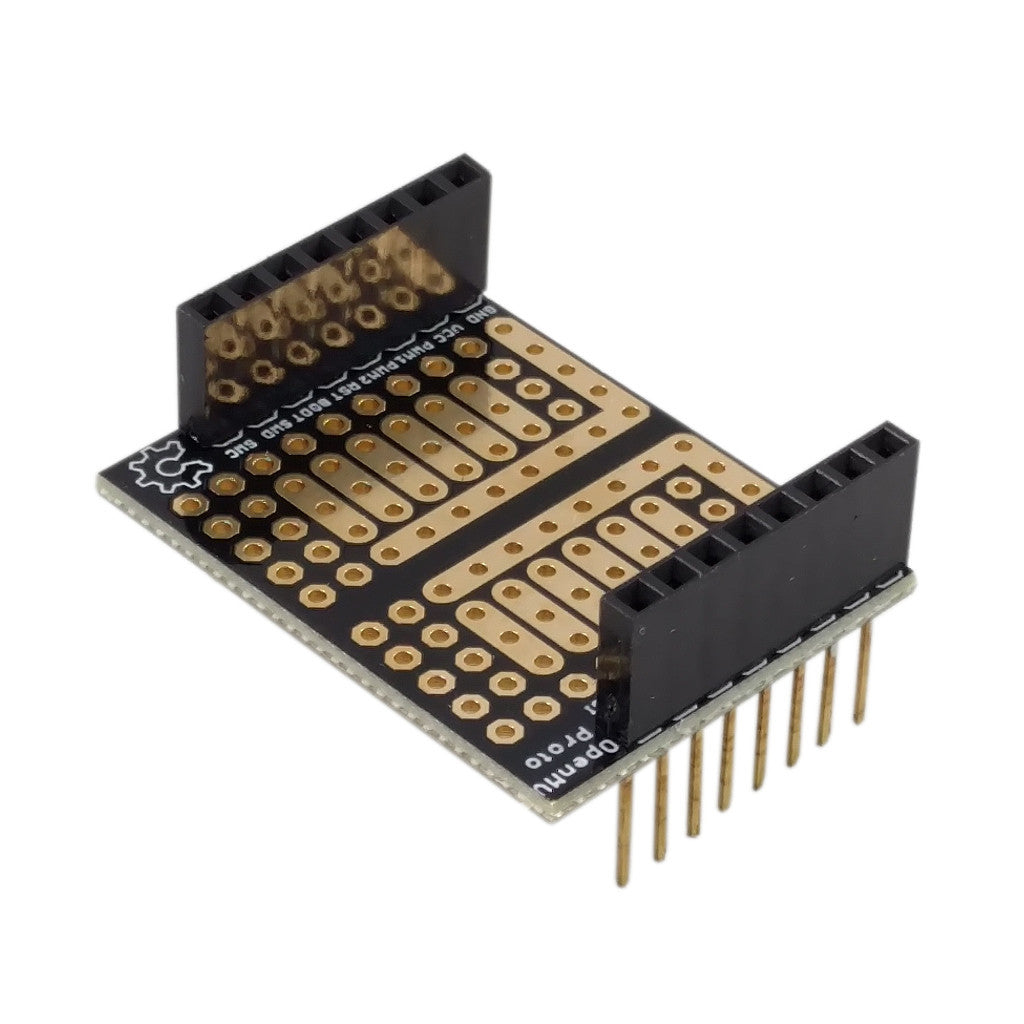

10×10 through-hole prototyping area with 3.3V and GND rails.

Motor Shield

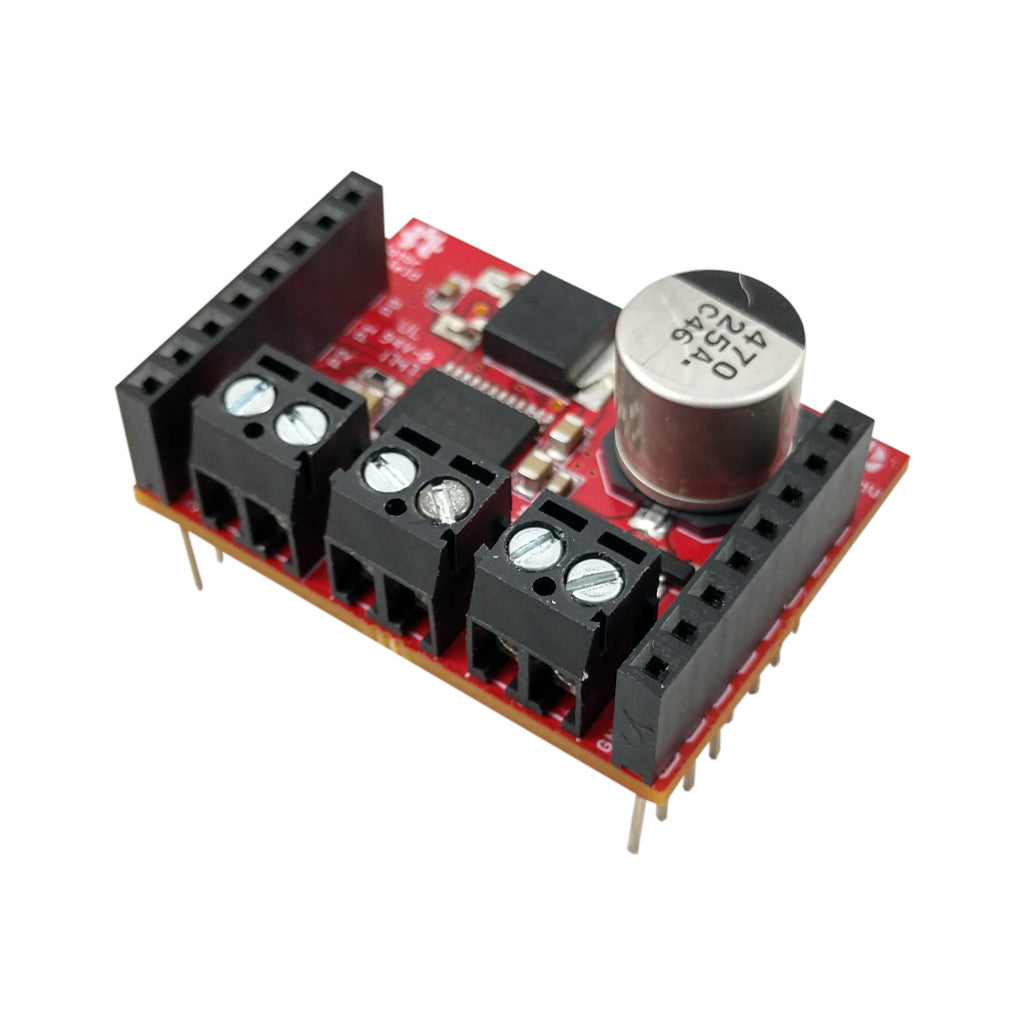

TB6612FNG dual-channel H-bridge driver with a 5V regulator for battery power.

Pan and Tilt Shield

Pan and Tilt Shield

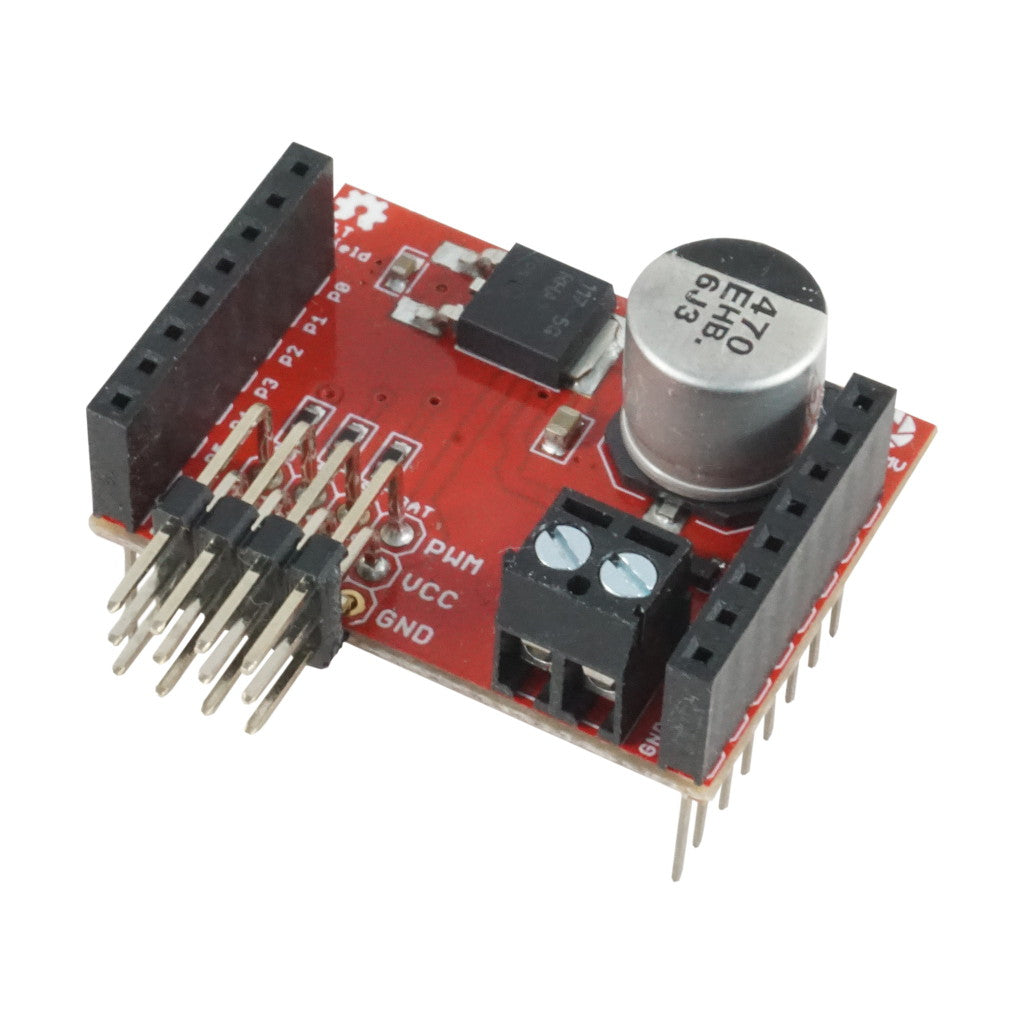

Three servo channels with a 5V regulator powering the camera and servos.

TV Shield

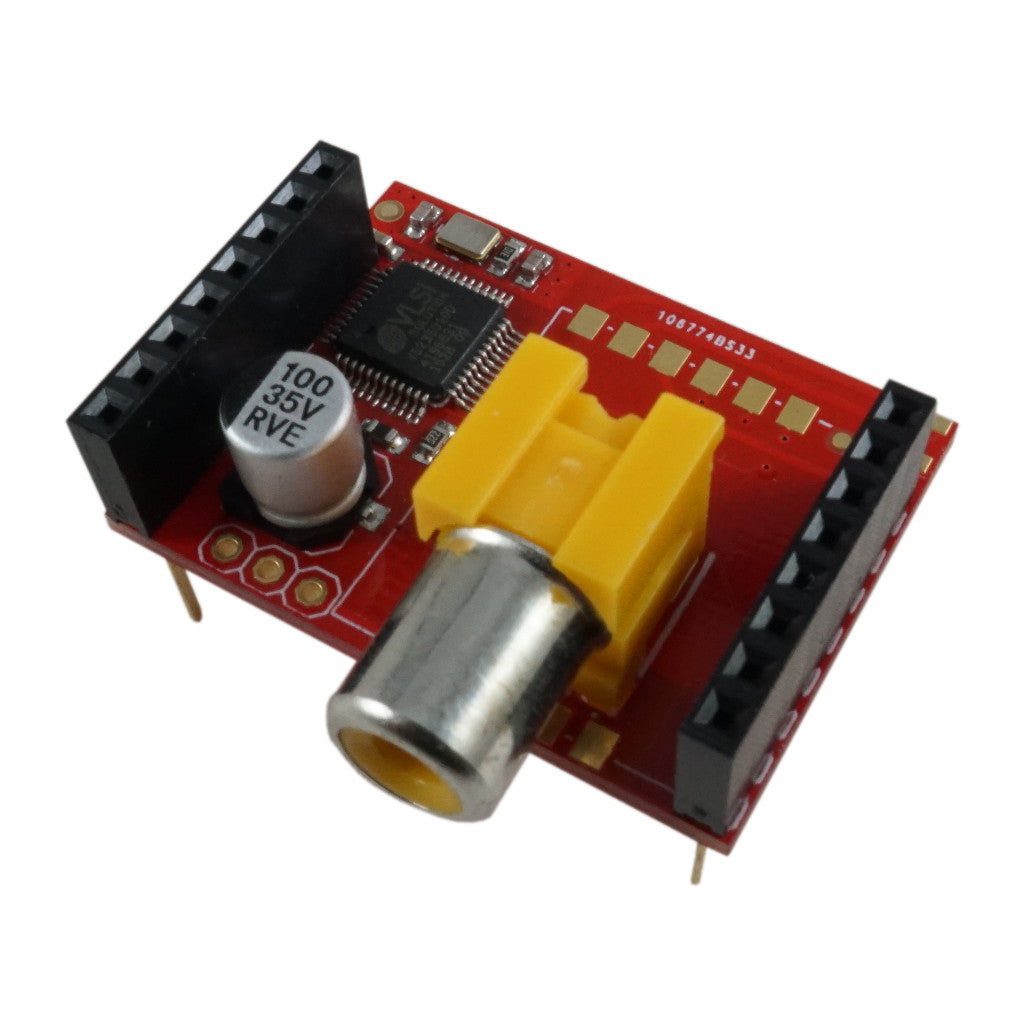

352×240 NTSC analog video output via a VS23S010 SPI-to-NTSC chip.

Wireless TV Shield

Wireless TV Shield

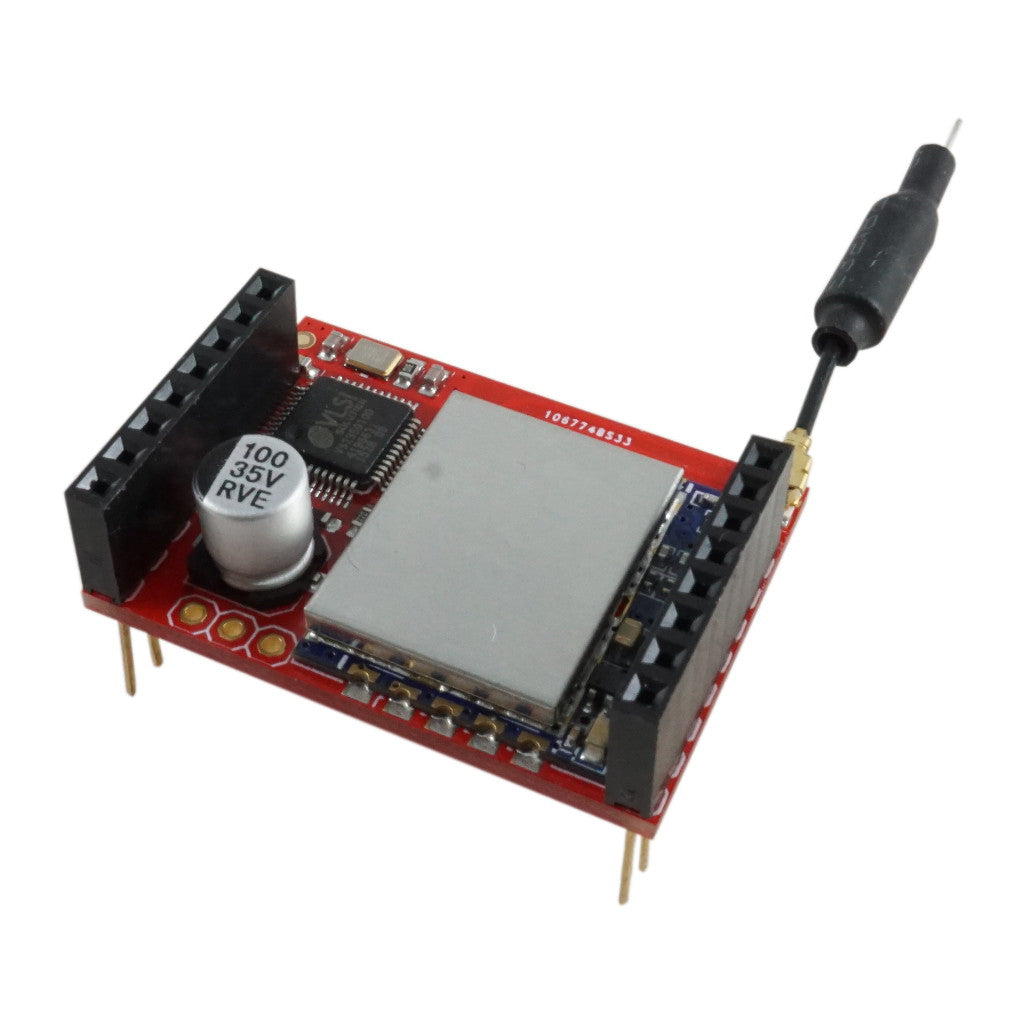

NTSC video output with a 5.8 GHz analog FPV transmitter on board.

QWIIC Shield

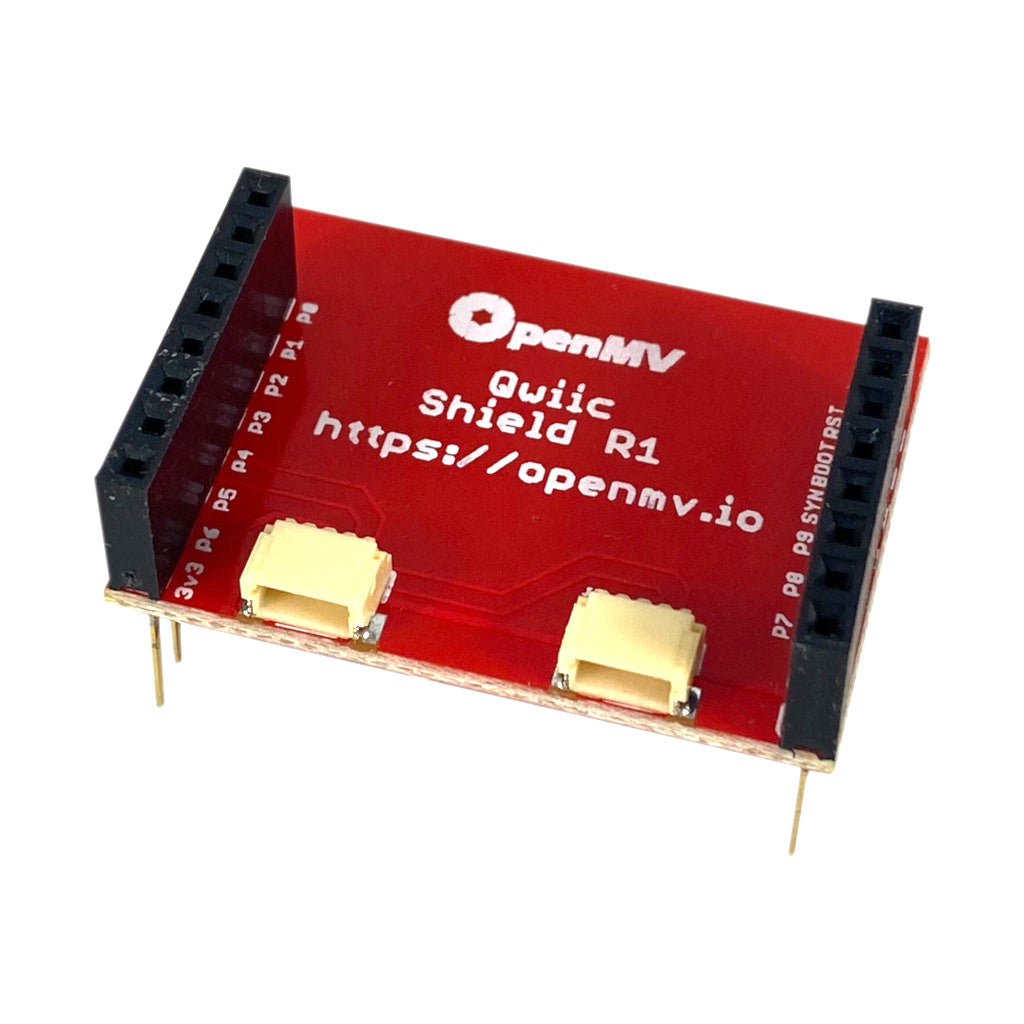

Two Qwiic JST-SH connectors for daisy-chained I2C peripherals.

Light Shield

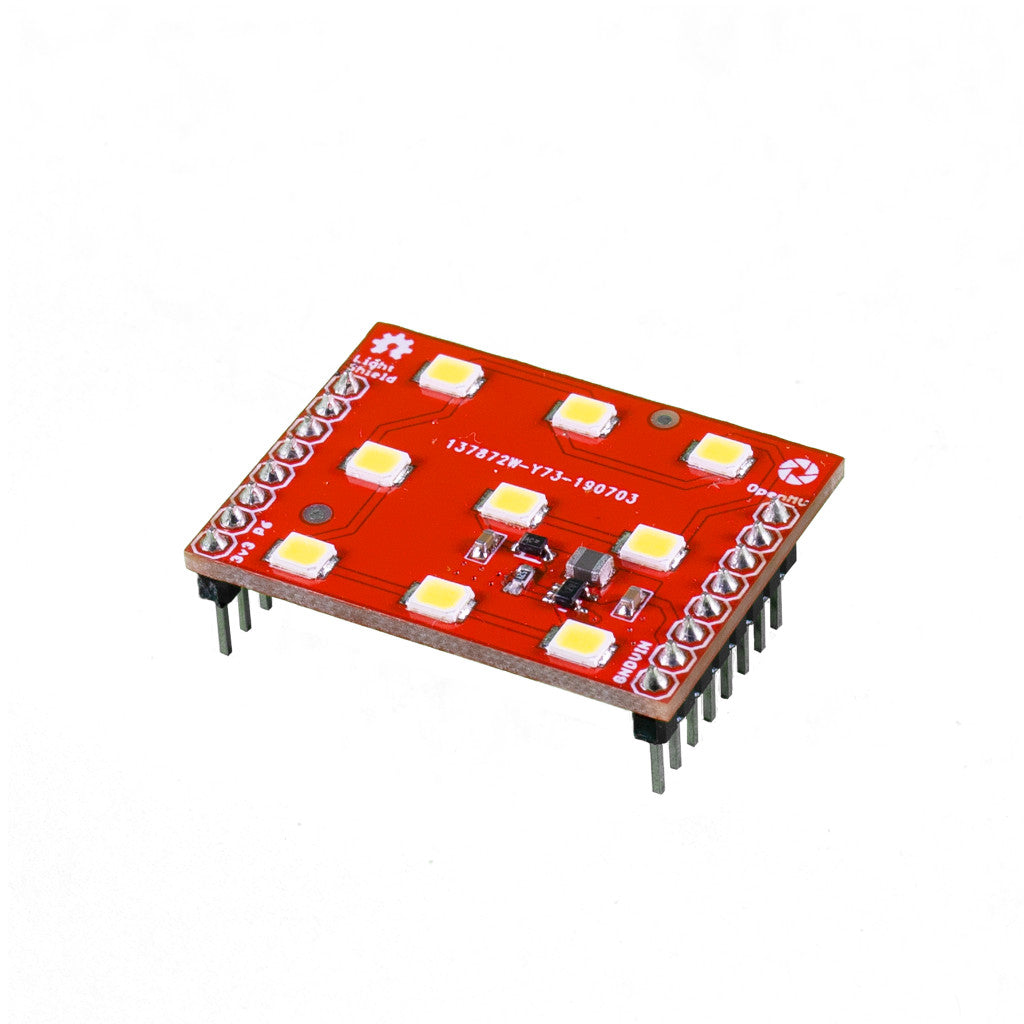

Nine high-power white LEDs with a TPS61169 driver and DAC/PWM dimming.

Servo Shield

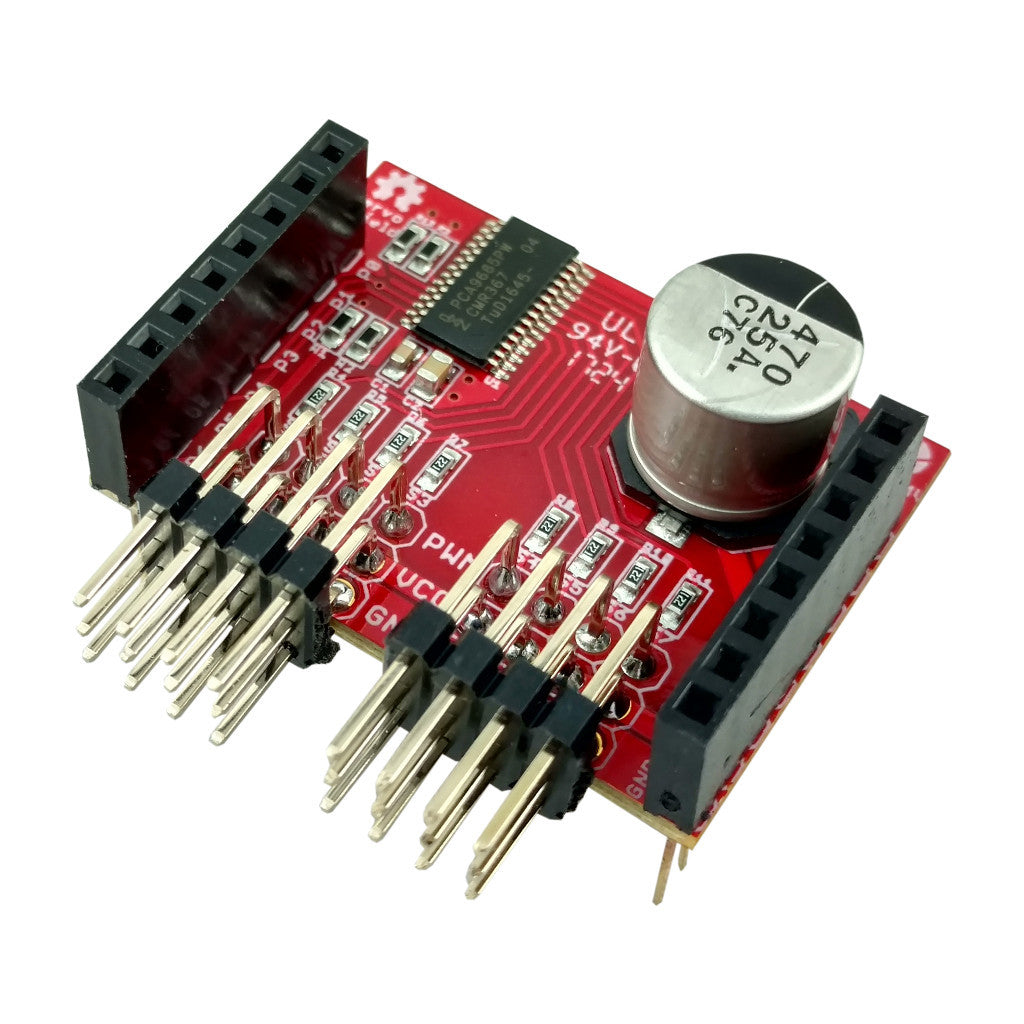

Eight-channel PCA9685 servo / PWM controller over I2C.

CAN Shield

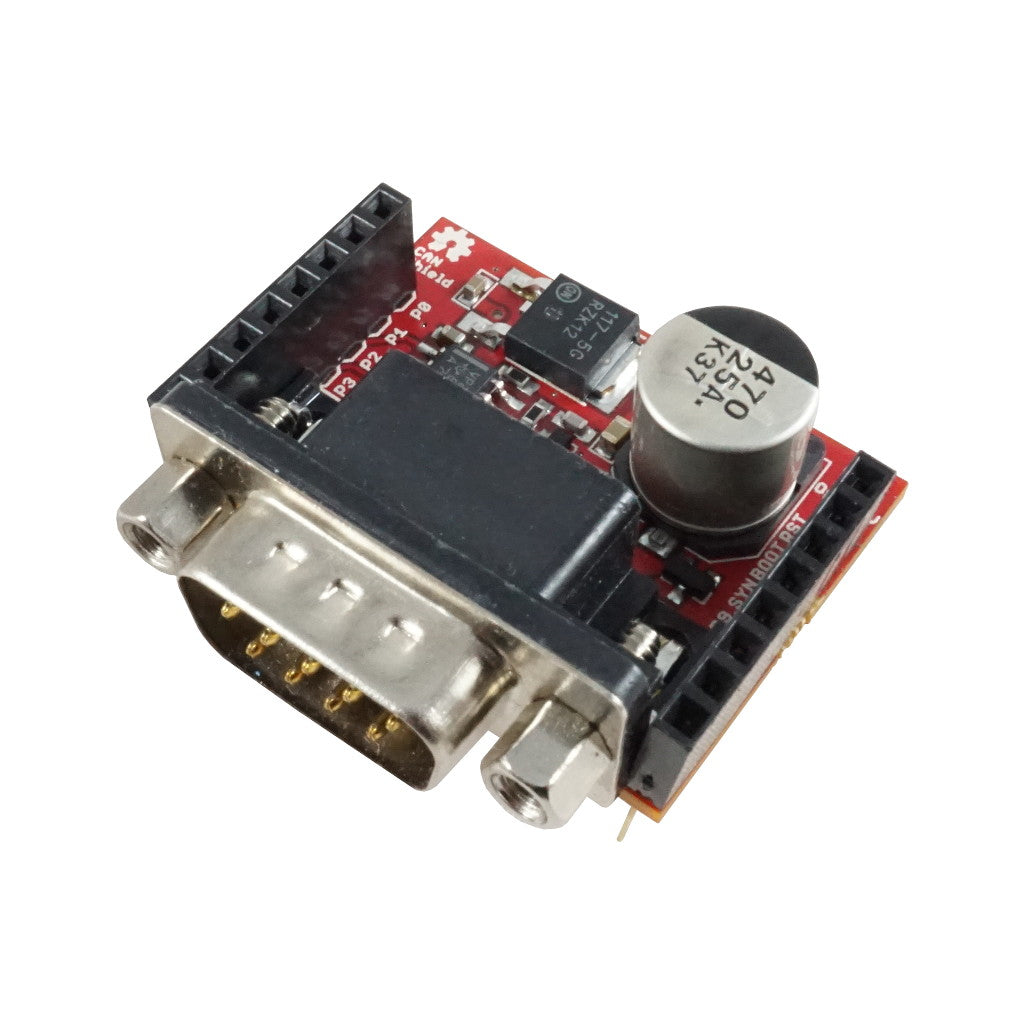

1 Mb/s CAN bus with a DB9 connector and a 12V regulator.

Thermopile Shield

Thermopile Shield

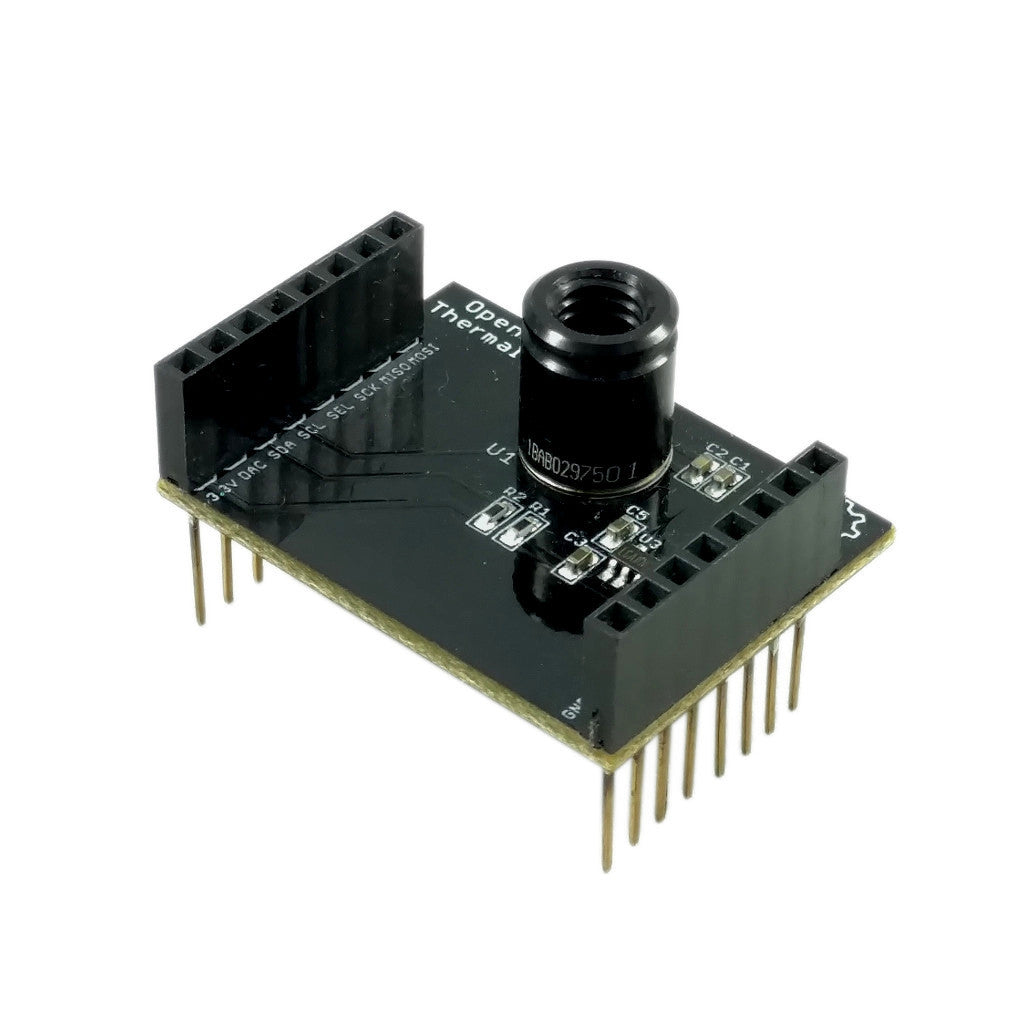

16×4 thermal-sensor array with per-pixel temperature.
