Arduino Portenta H7

The Arduino Portenta H7 is a 66 × 25 mm industrial dev board built around the STMicroelectronics STM32H747XI — a dual‑core SoC combining a Cortex‑M7 at 400 MHz with a Cortex‑M4 at 200 MHz. The OpenMV firmware runs entirely on the M7 core and is designed to be used with the Portenta Vision Shield (Ethernet or LoRa edition), which adds a Himax HM01B0 / HM0360 camera, dual PDM microphones, and a microSD slot to the base Portenta H7.

Arduino Portenta H7

For full datasheet, photos, and dimensions see the Arduino Portenta H7 product page.

Highlights

  • STMicroelectronics STM32H747XI dual Cortex‑M7 (400 MHz) + Cortex‑M4 (200 MHz). OpenMV firmware runs on the M7 core only; the M4 core is exposed through openamp for Inter‑Processor Communication.

  • 8 MB external SDRAM plus 2 MB internal flash and 16 MB external QSPI flash.

  • Hardware JPEG encoder/decoder.

  • Wi‑Fi b/g/n (2.4 GHz) + Bluetooth LE 5.1 via the Murata 1DX (CYW4343W) module — connects to the supplied antenna via an on‑board U.FL connector.

  • High‑speed USB‑C (480 Mb/s).

  • 22 user I/O pins on the Arduino MKR‑style top headers — D0–D14 (digital) plus A0–A6 (analog).

  • Two 80‑pin high‑density connectors on the bottom expose the full STM32H747 fabric — DCMI, DSI, Ethernet RMII, FDCAN, SDIO, SAI/I²S, UARTs, additional SPI/I²C/timers, and so on. Shields like the Vision Shield mate to these connectors.

  • JTAG / SWD broken out on the bottom HD connectors for advanced debug.

  • Battery support — 3.7 V Li‑Po JST connector plus on‑board charger and battery monitor.

Pinout

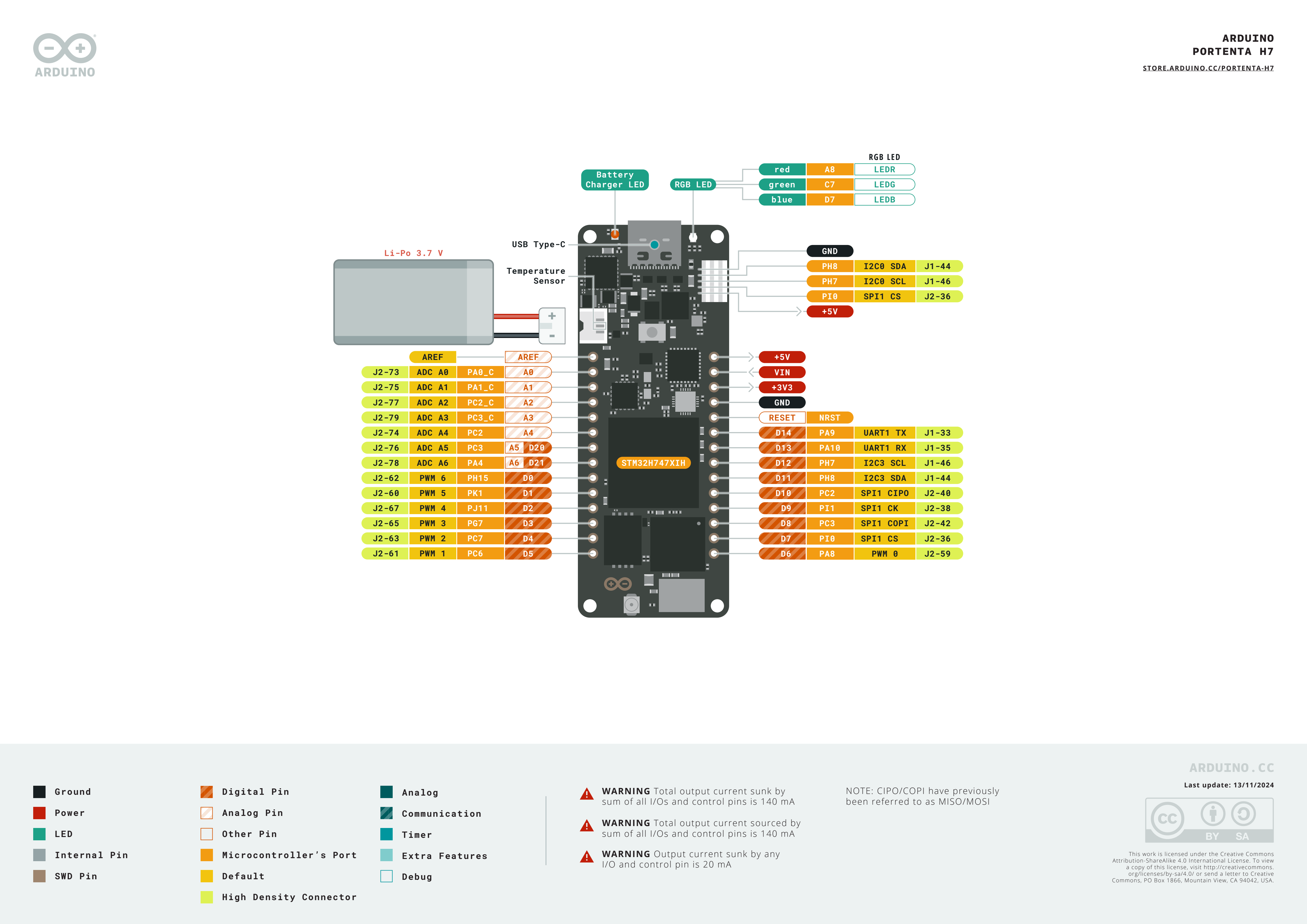

Arduino Portenta H7 Pinout

Pin reference

22 user pins are exposed on the Arduino MKR‑style top edge headers — 15 digital (D0-D14) plus 7 analog (A0-A6). Many more SoC pins are available through the bottom 80‑pin high‑density connectors for shield work; see Arduino’s full pinout PDF for that mapping.

Pin name

Reference

Function

D0

3.3 V

TIM8 CH3N

D1

3.3 V

TIM1 CH1 / SPI5 NSS

D2

3.3 V

TIM1 CH2 / SPI5 MISO

D3

3.3 V

GPIO

D4

3.3 V

TIM3 CH2 / TIM8 CH2 / USART6 RX

D5

3.3 V

TIM3 CH1 / TIM8 CH1 / USART6 TX

D6

3.3 V

TIM1 CH1 / I2C3 SCL

D7

3.3 V

TIM5 CH4 / SPI2 NSS

D8

3.3 V

SPI2 MOSI (shared with A3 / A5)

D9

3.3 V

SPI2 SCK

D10

3.3 V

SPI2 MISO (shared with A2 / A4)

D11

3.3 V

I2C3 SDA

D12

3.3 V

I2C3 SCL

D13

3.3 V

USART1 RX / TIM1 CH3

D14

3.3 V

USART1 TX / TIM1 CH2

A0

3.3 V

ADC12 IN0 (analog only)

A1

3.3 V

ADC12 IN1 (analog only)

A2

3.3 V

ADC123 IN12 (analog only; shared with D10)

A3

3.3 V

ADC12 IN13 (analog only; shared with D8)

A4

3.3 V

ADC123 IN12 (shared with D10)

A5

3.3 V

ADC12 IN13 (shared with D8)

A6

3.3 V

DAC1 OUT1 / ADC12 IN18

A7

3.3 V

TIM3 CH1 / ADC12 IN3 (not exposed on the headers)

D20

3.3 V

alias of D8 / A3 / A5

D21

3.3 V

alias of A6 — DAC1 OUT1

RESET

3.3 V

press the on‑board switch or pull to GND to reset

LED_RED

3.3 V

RGB LED red channel (active low)

LED_GREEN

3.3 V

RGB LED green channel (active low)

LED_BLUE

3.3 V

RGB LED blue channel (active low)

Note

A0-A3 are analog-only pads on the STM32H747 with no GPIO function — treat them as ADC inputs only. A2/A4 and A3/A5 share their physical pins with D10 and D8 respectively, so you can’t drive PWM or SPI on those while reading them as analog. A7 lives on the bottom HD connectors.

Power pins

MKR header pins:

  • VIN — main system rail into the on‑board PMIC. Fed via a diode from the +5V rail, the MKR VIN pin, or the bottom 80‑pin HD connectors.

  • +5V — 5 V rail fed from USB, the ESLOV connector, or the MKR +5V pin itself.

  • +3V3 — main 3.3 V rail (PMIC switching regulator output).

  • AREF — analog voltage reference for the ADC pins. Defaults to 3.3 V; drive externally to use a different reference.

  • GND — common ground.

Battery input:

  • Li‑Po JST on the front of the board accepts a 3.7 V Li‑Po cell. The PMIC charges it whenever +5V or VIN is present.

The Portenta H7 can be powered through any of these paths:

  • USB‑C — supplies 5 V to the on‑board PMIC.

  • ESLOV connector — up to 5 V on VESLOV (see ESLOV connector).

  • VIN pin — drive a regulated 5 V supply directly.

  • Li‑Po battery — connect to the JST on the front.

ESLOV connector

On the side of the board is a 5‑pin solder‑free ESLOV connector:

Pin

Name

Function

1

VESLOV

5 V power output (same rail as the MKR header’s +5V)

2

INT

external interrupt input on D7

3

SCL_EXT

shared with the MKR header D12 pad — same I²C 3 bus as the user header

4

SDA_EXT

shared with the MKR header D11 pad — same I²C 3 bus as the user header

5

GND

common ground

ESLOV’s SCL_EXT/SDA_EXT and the MKR header’s D12/D11 are the same pins — one I²C 3 bus exposed on two connectors.

Tip

Use the battery life estimator to model how long the Portenta H7 will run on a battery for a given active / deep-sleep duty cycle.

Recovery and debug pins

  • RESET — both an exposed pin on the top header and a momentary switch on the side of the board, tied to the SoC’s NRST line. Pull to GND or press the button to reset.

The Portenta H7 uses Arduino’s standard double‑tap reset to enter Arduino’s bootloader. Quickly press the reset button twice — the board re‑enumerates over USB as a DFU device and OpenMV IDE can flash a new firmware image.

The STM32 SWD signals are exposed on the bottom HD connector J1:

  • J1‑73 — NRST

  • J1‑75 — SWDIO (PA13)

  • J1‑77 — SWCLK (PA14)

  • J1‑79 — SWO (PB3)

Wire them up via a Portenta Breakout, the official Arduino debug adapter, or a custom carrier with a 1.27 mm header. All debug signals are 3.3 V referenced.

Note

When the Portenta Vision Shield is attached, the same SWD/JTAG signals are routed up to the standard 20‑pin ARM Cortex Debug JTAG header on the shield (1.27 mm / 0.05″ pitch).

Onboard peripherals

LEDs

The Portenta H7 has a single user RGB LED, software‑controllable through machine.LED:

from machine import LED

LED("LED_RED").on()
LED("LED_GREEN").on()
LED("LED_BLUE").on()

A separate orange charge LED next to the battery JST lights when the on‑board charger is sourcing current into a connected Li‑Po; it is not user‑controllable.

Camera sensor (Vision Shield)

With the Portenta Vision Shield (Ethernet or LoRa edition) attached, the Himax sensor is driven through the csi — camera sensors module:

import csi

cam = csi.CSI()
cam.reset()
cam.pixformat(csi.GRAYSCALE)
cam.framesize(csi.QVGA)
cam.snapshot(time=2000)       # let auto‑exposure settle

while True:
    img = cam.snapshot()

Two Vision Shield revisions are supported:

  • HM01B0 — 320 × 320 monochrome.

  • HM0360 — 640 × 480 monochrome.

Warning

While the Vision Shield camera is initialised, the following MKR header pins are claimed by the firmware and cannot be used:

MKR pin

Reason

D1

TIM1 CH1 — camera master clock

D6

TIM1 CH1 (alt) — camera master clock

D11

I²C 3 SDA — shared with the camera; bus is usable but avoid the sensor’s I²C address (0x24)

D12

I²C 3 SCL — shared with the camera; bus is usable but avoid the sensor’s I²C address (0x24)

A6 / D21

DCMI HSYNC — also disables the DAC

A7

DCMI PXCLK

Machine learning

ml — Machine Learning runs quantised TFLite models on the Cortex‑M7 with CMSIS‑NN kernels — fast enough for compact detectors at a few frames per second. Models on the read‑only /rom filesystem load directly from flash without copying to RAM. Here’s a 128×128 BlazeFace detector overlaying the detected face and its six landmarks on every frame from the Vision Shield camera:

import csi
import time
import ml
from ml.postprocessing.mediapipe import BlazeFace

# Initialize the sensor.
csi0 = csi.CSI()
csi0.reset()
csi0.pixformat(csi.GRAYSCALE)
csi0.framesize(csi.QVGA)
csi0.window((240, 240))

# Load built-in face detection model
model = ml.Model("/rom/blazeface_front_128.tflite", postprocess=BlazeFace(threshold=0.4))
print(model)

clock = time.clock()
while True:
    clock.tick()
    img = csi0.snapshot()

    # faces is a list of ((x, y, w, h), score, keypoints) tuples
    for r, score, keypoints in model.predict([img]):
        ml.utils.draw_predictions(img, [r], ("face",), ((0, 0, 255),), format=None)

        # keypoints is a ndarray of shape (6, 2)
        ml.utils.draw_keypoints(img, keypoints, color=(255, 0, 0))

    print(clock.fps(), "fps")

M4 core

The Cortex‑M4 core is exposed through openamp for inter‑processor communication. The OpenMV firmware runs on the M7 only; the M4 has no MicroPython runtime of its own, so using it means building a separate C firmware image and loading it from the filesystem via openamp.RemoteProc. Pre‑built example firmware that implements a virtual UART endpoint is available in the openamp_vuart repository — follow its README to build vuart.elf:

import openamp
import time

def ept_recv_callback(src_addr, data):
    print("Received:", data.decode())

ept = openamp.Endpoint("vuart-channel", callback=ept_recv_callback)

rproc = openamp.RemoteProc("vuart.elf")
rproc.start()

count = 0
while True:
    if ept.is_ready():
        ept.send("Hello World %d!" % count, timeout=1000)
        count += 1
    time.sleep_ms(1000)

In practice this support is best treated as a demonstration of the openamp interface rather than a working dual‑core platform — the M4 cannot be reset independently of the M7, so stopping the M4 forces a full system reboot.

Microphone (Vision Shield)

The Vision Shield carries dual PDM microphones captured through audio — Audio Module over the STM32’s SAI4 peripheral. Each buffer arrives as signed‑16‑bit PCM bytearray, ready to feed into ulab/numpy for DSP — for example, a simple loudness detector:

import audio
from ulab import numpy as np

def loudness(pcmbuf):
    samples = np.array(np.frombuffer(pcmbuf, dtype=np.int16), dtype=np.float)
    rms = np.sqrt(np.mean(samples ** 2))
    if rms > 10000:
        print("Loud!", int(rms))

audio.init(channels=1, frequency=16000, gain_db=24)
audio.start_streaming(loudness)

while True:
    pass

Pass channels=2 to audio.init to receive interleaved samples from both mics.

Battery fuel gauge

The Maxim MAX17262 ModelGauge m5 fuel gauge tracks the Li‑Po battery’s voltage, current, temperature, and state of charge. It sits on I²C 1 at address 0x36.

The MAX17262 has internal current sensing, so the current register reads out directly in microamps with no external Rsense factor to apply. Reading the fuel gauge is harmless — there is no driver shipped, but the registers documented in the MAX17262 datasheet can be read directly:

import time
import struct
from machine import I2C

FUEL_GAUGE = 0x36   # MAX17262

def read_reg(bus, addr, reg):
    return struct.unpack("<H", bus.readfrom_mem(addr, reg, 2))[0]

def read_signed(bus, addr, reg):
    v = read_reg(bus, addr, reg)
    return v - 0x10000 if v & 0x8000 else v

bus = I2C(1)

while True:
    # 0x05 RepCap — remaining capacity, raw × 0.5 mAh
    rep_cap   = read_reg(bus, FUEL_GAUGE, 0x05) * 0.5
    # 0x06 RepSOC — state of charge, raw / 256 %
    soc       = read_reg(bus, FUEL_GAUGE, 0x06) / 256
    # 0x08 Temp — die temperature, signed, raw / 256 °C
    temp      = read_signed(bus, FUEL_GAUGE, 0x08) / 256
    # 0x09 VCell — battery voltage, raw × 78.125 µV
    vcell     = read_reg(bus, FUEL_GAUGE, 0x09) * 78.125 / 1_000_000
    # 0x0A Current — signed, raw × 156.25 µA
    current   = read_signed(bus, FUEL_GAUGE, 0x0A) * 156.25 / 1000
    # 0x0B AvgCurrent — averaged current
    avg_curr  = read_signed(bus, FUEL_GAUGE, 0x0B) * 156.25 / 1000
    # 0x10 FullCapRep — learned full capacity, raw × 0.5 mAh
    full_cap  = read_reg(bus, FUEL_GAUGE, 0x10) * 0.5
    # 0x11 TTE — time-to-empty (valid while discharging), raw × 5.625 s
    tte_s     = read_reg(bus, FUEL_GAUGE, 0x11) * 5.625
    # 0x20 TTF — time-to-full   (valid while charging),  raw × 5.625 s
    ttf_s     = read_reg(bus, FUEL_GAUGE, 0x20) * 5.625
    # 0x17 Cycles — charge-cycle counter, 1% per LSB
    cycles    = read_reg(bus, FUEL_GAUGE, 0x17) / 100

    print("V:        %.3f V" % vcell)
    print("Capacity: %.1f / %.1f mAh (%.1f %%)" % (rep_cap, full_cap, soc))
    print("Temp:     %.1f C" % temp)
    print("Current:  %.1f mA  (avg %.1f mA)" % (current, avg_curr))
    print("TTE:      %.0f s   TTF: %.0f s" % (tte_s, ttf_s))
    print("Cycles:   %.2f" % cycles)
    print()
    time.sleep_ms(1000)

Current is signed two’s-complement: positive while charging, negative while discharging. TTE is only meaningful when current is negative; TTF only when current is positive.

Power management IC

The NXP PF1550 PMIC handles every regulator on the Portenta H7 — the +3V3 main rail, the +1V8 SoC core / I/O rail, and the Li‑Po charger. It sits on I²C 1 at address 0x08.

Warning

Reading PMIC registers is fine; writing to them is dangerous. Misconfiguring a buck regulator or charger setting can permanently damage the board, the battery, or both. Treat the PMIC as read‑only unless you know exactly what you’re doing.

The most useful thing the PMIC tells you that the fuel gauge can’t is the charger state machine — whether the board is currently running on USB / ESLOV / VIN, what stage of the charge cycle the Li‑Po is in, and whether the charger is in a thermal or watchdog fault. The charger registers live at an offset of 0x80 in the PF1550’s main I²C address space (see §22.2 of the PF1550 datasheet), so for example CHG_INT_OK at charger address 0x04 is read from PMIC register 0x84:

import time
from machine import I2C

PMIC = 0x08

# Charger state machine (low nibble of CHG_SNS, register 0x87)
CHG_STATES = {
    0x0: "precharge",
    0x1: "fast charge (constant current)",
    0x2: "fast charge (constant voltage)",
    0x3: "end of charge",
    0x4: "done",
    0x6: "timer fault",
    0x7: "thermistor suspend",
    0x8: "off — input invalid or charger disabled",
    0x9: "battery overvoltage",
    0xA: "thermal shutdown",
    0xC: "linear mode (not charging)",
}

bus = I2C(1)

while True:
    # 0x84 CHG_INT_OK — single-bit indicators
    ok = bus.readfrom_mem(PMIC, 0x84, 1)[0]
    vbus_ok = bool(ok & (1 << 5))   # bit 5 — VBUS valid (USB/VIN)
    bat_ok  = bool(ok & (1 << 2))   # bit 2 — battery OK
    chg_ok  = bool(ok & (1 << 3))   # bit 3 — charger actively charging
    thm_ok  = bool(ok & (1 << 7))   # bit 7 — thermistor in normal range

    # 0x87 CHG_SNS — charger state + thermal regulation flag
    chg_sns = bus.readfrom_mem(PMIC, 0x87, 1)[0]
    state   = CHG_STATES.get(chg_sns & 0x0F, "reserved")
    treg    = bool(chg_sns & (1 << 7))   # thermal regulation active

    print("VBUS valid:         ", vbus_ok)
    print("battery OK:         ", bat_ok)
    print("charger active:     ", chg_ok)
    print("thermistor normal:  ", thm_ok)
    print("thermal reg active: ", treg)
    print("state:              ", state)
    print()
    time.sleep_ms(1000)

Other read‑only registers worth a look in the datasheet (all at charger‑offset 0x80): 0x80 CHG_INT (latched charger interrupts — fault flags), 0x86 VBUS_SNS (the multi‑bit VBUS state including OVLO / UVLO / DPM), and 0x88 BATT_SNS (battery presence and overcurrent state).

Wi‑Fi

The on‑board Murata 1DX (CYW4343W) is exposed via network — network configuration as a station interface. Connect the supplied antenna to the on‑board U.FL connector before bringing up the radio:

import network, time

wlan = network.WLAN(network.STA_IF)
wlan.active(True)
wlan.connect("ssid", "password")
while not wlan.isconnected():
    time.sleep(1)
print("Wi‑Fi IP:", wlan.ipconfig("addr4")[0])

Bluetooth

The same Murata 1DX also exposes Bluetooth LE 5.1. Use aioble — Async BLE for asyncio‑friendly BLE — for example, advertise as a peripheral and wait for a central to connect:

import asyncio
import aioble

async def run():
    while True:
        conn = await aioble.advertise(250_000, name="Portenta-H7")
        print("Connected:", conn.device)
        await conn.disconnected()

asyncio.run(run())

LoRa (Vision Shield)

The LoRa edition of the Vision Shield adds a Murata CMWX1ZZABZ LoRaWAN module wired to the Portenta H7 over UART. The lora module wraps the AT‑command firmware and supports OTAA or ABP join, uplink, and downlink:

from lora import Lora
from lora import BAND_EU868
from lora import LoraErrorTimeout

lora = Lora(band=BAND_EU868, poll_ms=60000)
print("Device EUI:", lora.get_device_eui())

appEui = "1234567890123456"
appKey = "12345678901234567890123456789012"

try:
    lora.join_OTAA(appEui, appKey)
except LoraErrorTimeout as e:
    print("Join timed out — try moving near a window:", e)

lora.set_port(3)
lora.send_data("HeLoRA world!", True)

while True:
    if lora.available():
        data = lora.receive_data()
        if data:
            print("Port:", data["port"], "Data:", data["data"])
    lora.poll()

Use BAND_US915 / BAND_AS923 / BAND_AU915 etc. for non‑EU regions, and switch to lora.Lora.join_ABP() if your network server uses ABP activation.

Warning

While the LoRa module is in use, the driver claims the following MKR header pins as control lines for the Murata CMWX1ZZABZ — they cannot be used:

MKR pin

Reason

D3

LoRa module BOOT pin

D5

LoRa module RST pin

Ethernet (Vision Shield)

The Ethernet edition of the Vision Shield adds an RJ45 jack with magnetics wired to the STM32H747’s 10/100 Ethernet MAC over RMII. Plug in an Ethernet cable and the PHY appears as a LAN interface; DHCP runs automatically once the link comes up:

import network
import time

lan = network.LAN()
lan.active(True)
while not lan.isconnected():
    time.sleep(1)
print("Ethernet IP:", lan.ipconfig("addr4")[0])

microSD card (Vision Shield)

When a card is inserted it is mounted automatically at /sdcard and is usable through the regular file system:

import os

for entry in os.listdir("/sdcard"):
    print(entry)

Bus reference

GPIO

Use machine.Pin to read or drive any of the silkscreened pins. Outputs are 3.3 V CMOS and can sink/source up to 20 mA per pin (140 mA total across the whole header).

from machine import Pin

out = Pin("D0", Pin.OUT)
out.on()
out.off()
out.value(1)

inp = Pin("D1", Pin.IN, Pin.PULL_UP)
print(inp.value())

Any input pin can also fire an interrupt on edge transitions:

def handler(pin):
    print("triggered:", pin)

Pin("D1", Pin.IN, Pin.PULL_UP).irq(
    handler, Pin.IRQ_FALLING | Pin.IRQ_RISING,
)

UART

Bus

TX

RX

UART1

D14

D13

UART6

D5

D4


from machine import UART

uart = UART(1, baudrate=115200)
uart.write("hello")
uart.read(5)

I²C

Bus

SCL

SDA

I2C3

D12

D11


from machine import I2C

i2c = I2C(3, freq=400_000)
i2c.scan()
i2c.writeto(0x76, b"hi")

The D11/D12 pads on the MKR header and the ESLOV connector’s SDA_EXT/SCL_EXT pins land on the same I²C 3 bus — see ESLOV connector above for the ESLOV pinout.

The same hardware can also be used in target (slave) mode through machine.I2CTarget to expose a memory region to another I²C controller:

from machine import I2CTarget

buf = bytearray(32)
target = I2CTarget(3, addr=0x42, mem=buf)

SPI

Bus

MOSI

MISO

SCK

CS

SPI2

D8

D10

D9

D7


from machine import SPI
from machine import Pin

spi = SPI(2, baudrate=10_000_000)
cs = Pin("D7", Pin.OUT, value=1)   # CS is not driven by the SPI peripheral

cs.value(0)
spi.write(b"hello")
cs.value(1)

ADC

The Portenta H7 exposes eight 12‑bit ADC channels on A0–A7. All are 3.3 V referenced — read_u16 returns 0–65535 across 0–3.3 V at the pin:

from machine import ADC
import time

adc = ADC("A0")
while True:
    voltage = adc.read_u16() * 3.3 / 65535
    print(voltage)
    time.sleep_ms(100)

DAC

A single 12‑bit DAC channel is exposed on DAC1 (A6 / D21) through pyb.DAC:

from pyb import DAC

dac = DAC("DAC1")
dac.write(int(0.5 * 255))   # 8‑bit output, ~1.65 V

PWM

Pin

Timer / channel

D0

TIM8 CH3N

D1

TIM1 CH1, TIM8 CH3N

D2

TIM1 CH2, TIM8 CH2N

D4

TIM3 CH2, TIM8 CH2

D5

TIM3 CH1, TIM8 CH1

D6

TIM1 CH1

D7

TIM5 CH4

D13

TIM1 CH3

D14

TIM1 CH2

A7

TIM3 CH1

Drive any of them via machine.PWM:

from machine import Pin, PWM

pwm = PWM(Pin("D4"), freq=1_000, duty_u16=32768)

Note

Several pins share timer channels:

  • TIM1 CH1 is on D1 and D6.

  • TIM1 CH2 is on D2 and D14.

  • TIM8 CH3N is on D0 and D1.

Pick one consumer per timer channel.

Warning

TIM1 is reserved for the camera master clock when the Vision Shield is initialised through csi — camera sensors — D1, D2, D6, D13, and D14 cannot be PWM‑driven while the camera is active.

Software bit‑banged buses

machine.SoftI2C and machine.SoftSPI work on any GPIO if you need an extra bus.

Thermal sensor (off‑board)

The firmware includes the fir — thermal sensor driver (fir == far infrared) driver for externally wired thermal imagers:

  • MLX90621 — 16 × 4 IR array

  • MLX90640 — 32 × 24 IR array

  • MLX90641 — 16 × 12 IR array

  • AMG8833 — 8 × 8 IR array

Wire the module to the board’s I²C bus and read frames with fir.init() + fir.snapshot():

import time
import image
import fir

fir.init()                          # auto‑detects the sensor
clock = time.clock()

while True:
    clock.tick()
    try:
        img = fir.snapshot(x_scale=5, y_scale=5,
                           color_palette=image.PALETTE_IRONBOW,
                           hint=image.BICUBIC,
                           copy_to_fb=True)
    except OSError:
        continue
    print(clock.fps())

The fir driver only talks to the sensor over I²C 3 — wire the module to D12 (SCL) and D11 (SDA).

Timing

time

The time module covers blocking delays, monotonic ticks, and elapsed‑time measurement:

import time

time.sleep(1)              # seconds
time.sleep_ms(500)
time.sleep_us(10)

start = time.ticks_ms()
# ...do work...
elapsed = time.ticks_diff(time.ticks_ms(), start)

Virtual timers

machine.Timer schedules periodic or one‑shot callbacks without consuming a hardware timer slot. Pass -1 as the id to use a virtual (software) timer:

from machine import Timer

one_shot = Timer(-1)
one_shot.init(period=5_000, mode=Timer.ONE_SHOT,
              callback=lambda t: print("once"))

periodic = Timer(-1)
periodic.init(period=2_000, mode=Timer.PERIODIC,
              callback=lambda t: print("tick"))

Period values are in milliseconds. Call deinit() to stop and release the slot.

Real‑time clock

machine.RTC keeps wall‑clock time across resets. The HD connector also exposes a COINCELL pad that can back the RTC from a CR2032 across power loss:

from machine import RTC

rtc = RTC()
rtc.datetime((2026, 4, 30, 4, 12, 0, 0, 0))   # Y, M, D, weekday, h, m, s, subsec
print(rtc.datetime())

Watchdog

machine.WDT resets the board if the application hangs. Once started it can’t be stopped or reconfigured — feed it periodically inside your main loop:

from machine import WDT

wdt = WDT(timeout=5_000)   # 5 second window
while True:
    # ...do work...
    wdt.feed()

Boot and runtime info

Firmware update (DFU)

The Portenta H7 uses Arduino’s standard double‑tap reset to enter Arduino’s bootloader. Quickly press the reset button twice — the board re‑enumerates over USB as a DFU device and OpenMV IDE can flash a new firmware image.

A running script can re‑enter the bootloader on demand by calling machine.bootloader():

import machine

machine.bootloader()

Filesystem and boot order

The Portenta H7 firmware mounts up to three filesystems on boot:

  • Internal flash — always mounted at /flash. Holds main.py and README.txt by default; created on the very first boot.

  • microSD card — if a Vision Shield is attached and a card is inserted, it is mounted at /sdcard.

  • ROMFS — read‑only, memory‑mapped filesystem at /rom mounted automatically by MicroPython at startup.

After mounting, the working directory is set to /sdcard when the card is present, otherwise /flash. The interpreter then runs scripts from that directory:

  • boot.py is executed on every soft reset (cold boot, Ctrl‑D from the REPL, or whenever the running script returns).

  • main.py is executed only on cold boot, immediately after boot.py. Subsequent soft resets re‑run boot.py but drop straight to the REPL — to re‑run main.py you have to fully reset the board.

Dropping a boot.py or main.py onto the SD card overrides the copy in flash without touching it — both files are looked up in the boot directory (/sdcard when the card is mounted, otherwise /flash).

The default main.py shipped on a freshly flashed board just blinks the user RGB LED’s blue channel as a heartbeat (two short pulses, short gap), so you can tell the firmware booted cleanly without any host attached.

sys.path is extended to include all three filesystems and their lib/ subdirectories, so importable modules can live in /flash/lib, /sdcard/lib, or /rom/lib.

To force the system to ignore an inserted SD card (for example to run the flash main.py even with a card present), create an empty file named SKIPSD at the root of /flash.

When connected over USB, the boot filesystem (/sdcard if a card is present, otherwise /flash) also enumerates as a USB mass‑storage drive on the host, letting you edit boot.py, main.py, and any other files directly. Eject the drive before resetting the board so the host flushes its cached writes.

Note

Because the OS treats the drive as a passive block device, files created or modified by code running on the camera will not show up until the host re‑mounts the drive. If both the OS and the camera write the same filesystem at the same time, the OS will win and overwrite changes made by the camera. Use the SD card for any data the script writes back, and remount before reading those files from the host.

Note

The user RGB LED’s red channel may briefly light up while the host is reading from or writing to the USB mass‑storage drive — this is a firmware‑driven activity indicator, not a fault.

Storage sizes

The Portenta H7 ships with:

  • /flash — 11 MB FAT filesystem, read/write.

  • /rom — 4 MB read-only memory-mapped ROMFS, used to ship scripts and ML models that benefit from zero-copy mmap access.

  • /sdcard — full size of whatever microSD card is inserted in a Vision Shield (when present), read/write.

Hard‑fault indicator

If the user RGB LED is rapidly cycling through all colours — fast enough that it tends to look like a twinkling white LED rather than distinct hues — the firmware has hit an unrecoverable hard fault. Reflash the firmware to recover; if reflashing doesn’t help, the board may be physically damaged.

Software libraries

See the library index for the full list of modules — including which ones are unique to the Portenta H7 build.
