LCD Shield

The LCD Shield is a 1.8 inch 128x160 SPI TFT for showing live frames or debugging information directly from the OpenMV Cam. Ideal for field robotics and stand-alone deployments.

For full datasheet, photos, and ordering see the LCD Shield product page.

Highlights

• 1.8 inch TFT LCD, 128x160, RGB565

• Controllable backlight

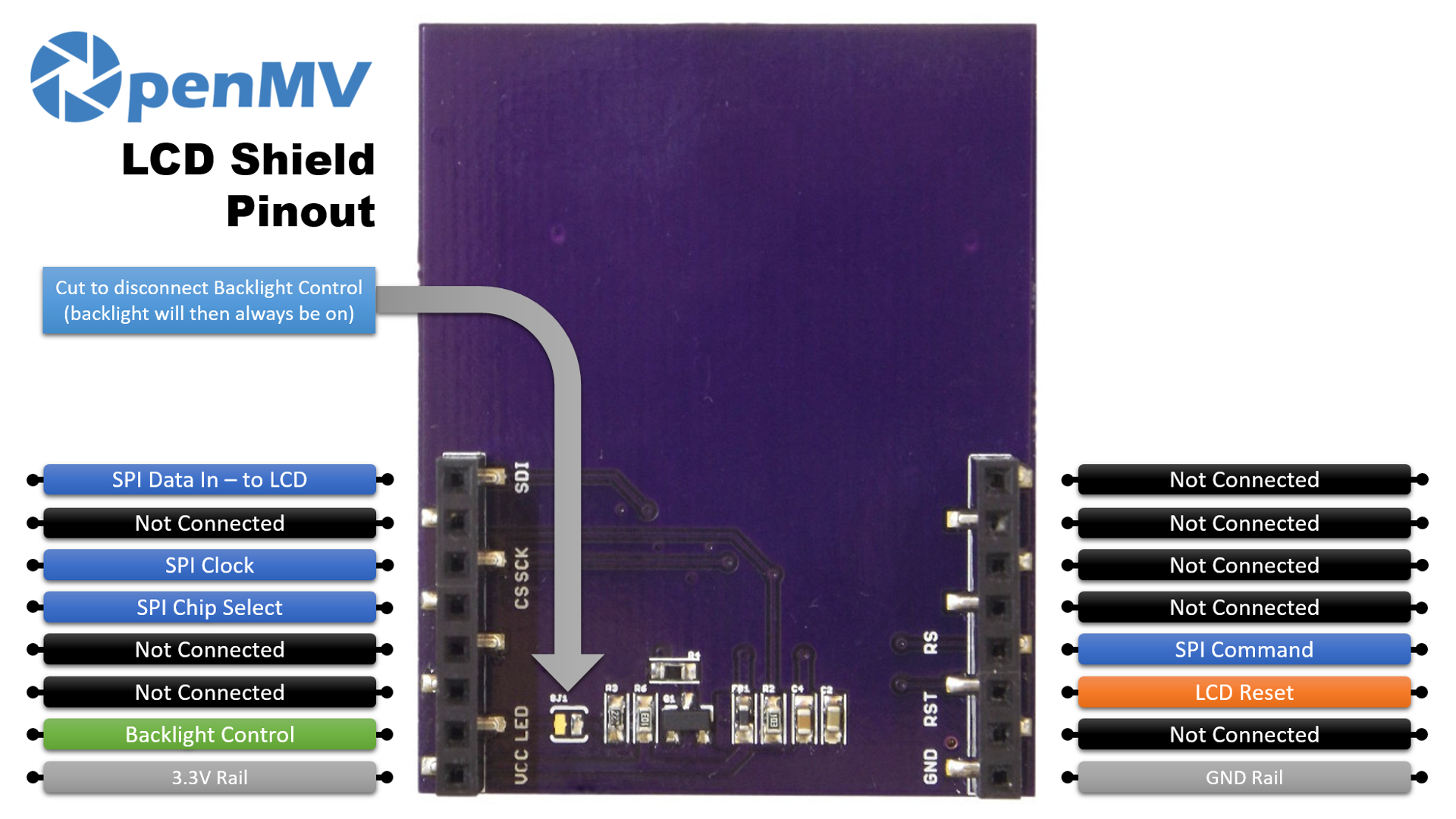

Pinout

Pin reference

Pin	Function
P0	SPI MOSI — data out to the LCD
P2	SPI clock
P3	SPI chip select
P5	Backlight control
P7	LCD reset
P8	SPI command (data / command select)
3.3V rail	Powers the LCD
GND rail	Common ground

Note

Cut the solder trace on the back of the shield to disconnect P5 from the backlight; the backlight is then permanently on.

Usage

Stream camera frames to the 128×160 SPI display:

import csi
import display
import image
import time

csi0 = csi.CSI()
csi0.reset()
csi0.pixformat(csi.RGB565)
csi0.framesize((128, 160))

lcd = display.SPIDisplay()
clock = time.clock()

while True:
    clock.tick()
    lcd.write(csi0.snapshot(), hint=image.CENTER | image.SCALE_ASPECT_KEEP)
    print(clock.fps())

Drive the backlight via PWM for adjustable brightness. Wrap machine.PWM in a small backlight controller class and pass it to display.SPIDisplay through its backlight argument — SPIDisplay calls backlight(value) on the object whenever it needs to update the level:

import display
from machine import Pin, PWM


class PWMBacklight:
    """Drives a backlight pin with machine.PWM (0–100 %)."""

    def __init__(self, pin, frequency=200):
        self._pwm = PWM(Pin(pin), freq=frequency, duty_u16=0)

    def backlight(self, value):
        self._pwm.duty_u16(int(value * 65535 / 100))

    def deinit(self):
        self._pwm.deinit()


lcd = display.SPIDisplay(backlight=PWMBacklight("P5"))
lcd.backlight(50)  # 0–100
