PoE Shield

The PoE Shield gives OpenMV Cams with on-board Ethernet a single-cable IP-camera deployment by delivering both power and network over 802.3af PoE. Use it when 100 Mb/s is enough; reach for the Gigabit PoE Shield when you need more bandwidth.

PoE Shield

For full datasheet, photos, and ordering see the PoE Shield product page.

Highlights

  • 10/100 Mb/s Ethernet with IEEE 802.3af PoE

  • Up to 5.67 W to the camera via 5.4 V VIN

  • 1500 V isolated design — stacks with dual-header shields

  • Peak UDP transmit over 90 Mb/s

  • Compatible with the OpenMV N6 and RT1062

Pinout

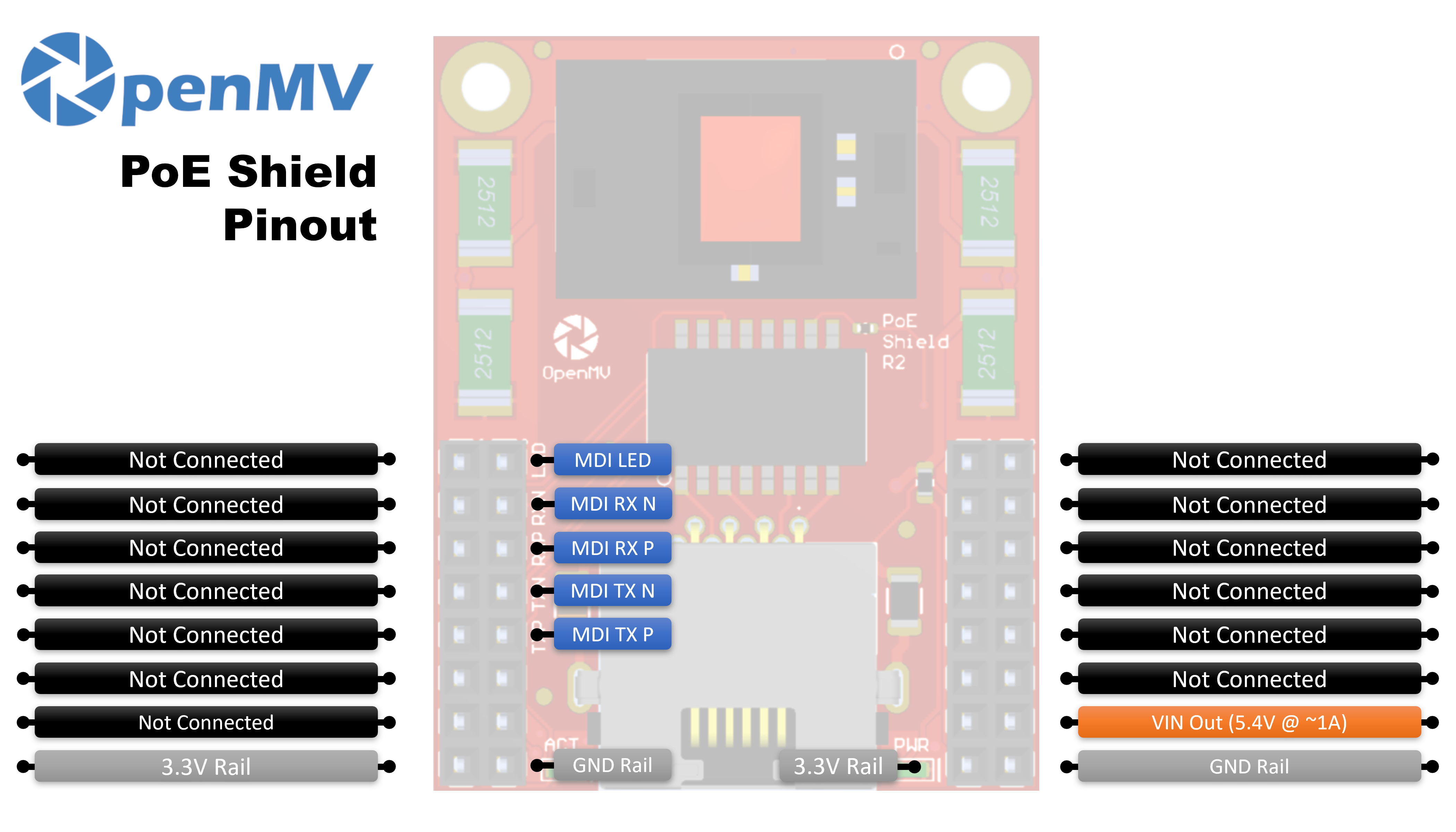

PoE Shield Pinout

Pin reference

Pin

Function

MDI LED

PHY link / activity LED line

MDI TX P

MDI TX+ — transmit pair positive

MDI TX N

MDI TX− — transmit pair negative

MDI RX P

MDI RX+ — receive pair positive

MDI RX N

MDI RX− — receive pair negative

VIN out

5.4 V at up to ~1 A from the on-board PoE regulator (powers the camera)

3.3V rail

Powers the shield’s on-board electronics

GND rail

Common ground

Usage

When the shield is connected to a PoE switch, the camera’s 10/100 Ethernet PHY appears as a network.LAN interface. DHCP runs automatically once the link comes up:

import network
import time

lan = network.LAN()
lan.active(True)
while not lan.isconnected():
    time.sleep(1)
print("Ethernet IP:", lan.ipconfig("addr4")[0])

Warning

This page is under construction.
